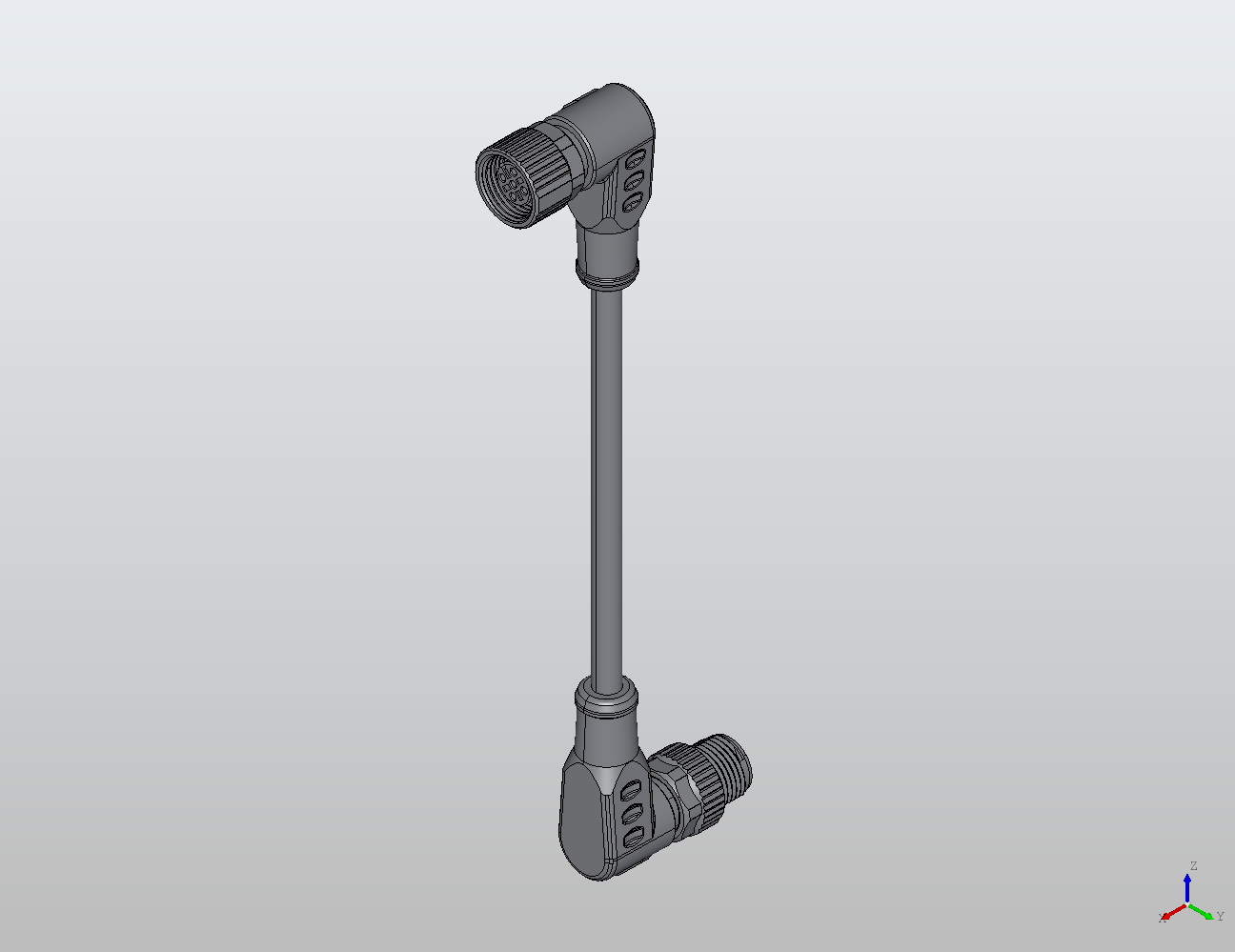

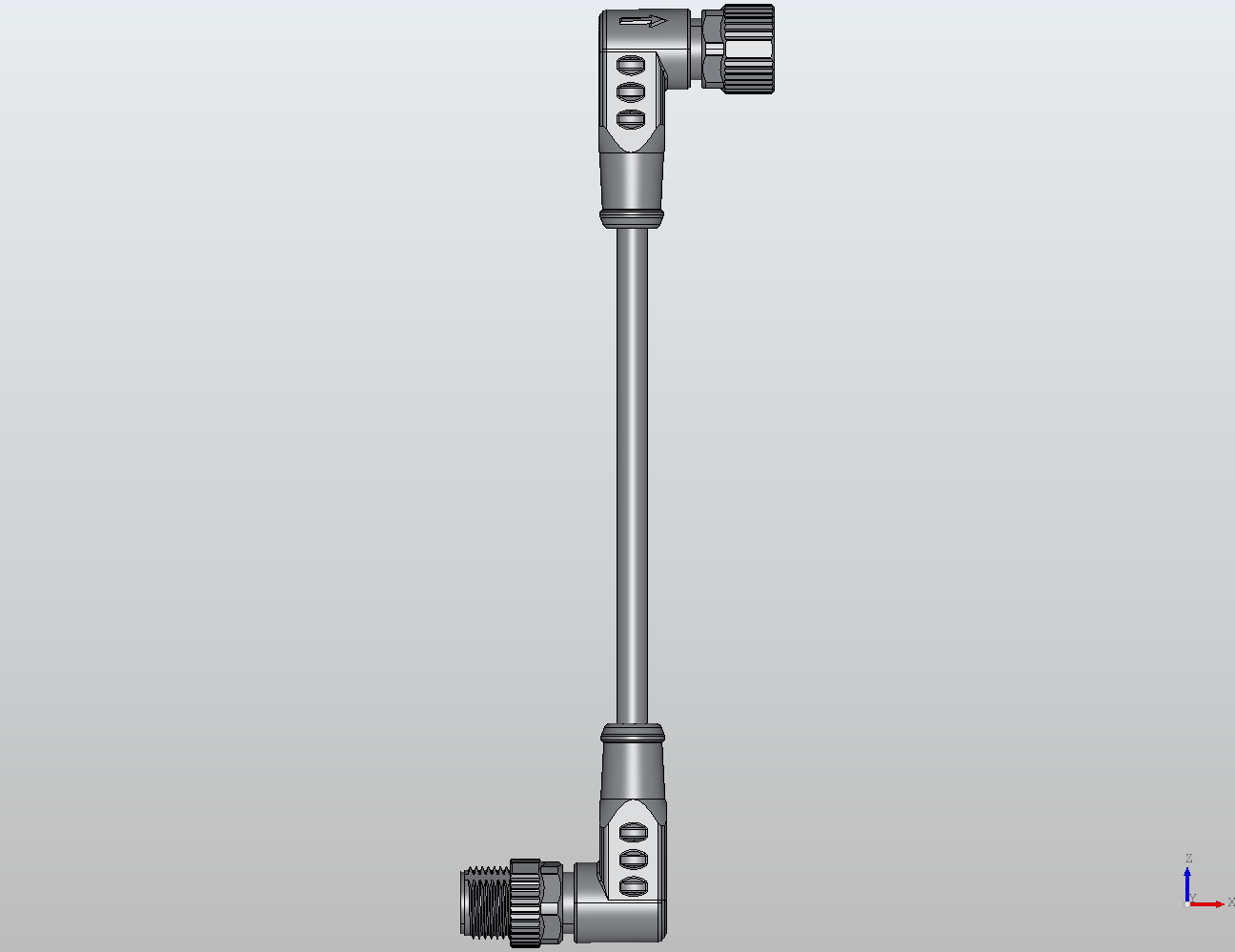

M12 Round Plug Connector M12-M12 Connection Cable 90°/90° Male/Female 940222
940222
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded 5-pole male/female connection cable with 90°/90° angled connectors (SKU 940222) is designed for compact routing in machine wiring and control cabinets where straight exits are impractical. The assembly is built to IP66K for protection against dust ingress and high-pressure washdown conditions common in industrial environments.
Current 12 A
Voltage 125 V AC/DC
Protection IP66
Standard IEC 61076-2-101
Shielding Yes
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Male/Female |
| Poles | 5 |
| Coding | a |
| Variant Count | 25 |
| Current | 4 |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
| Voltage | 125V AC DC |
| Direction | 90°/90 |
| Shielded | No |
| Protection | ip66k |
