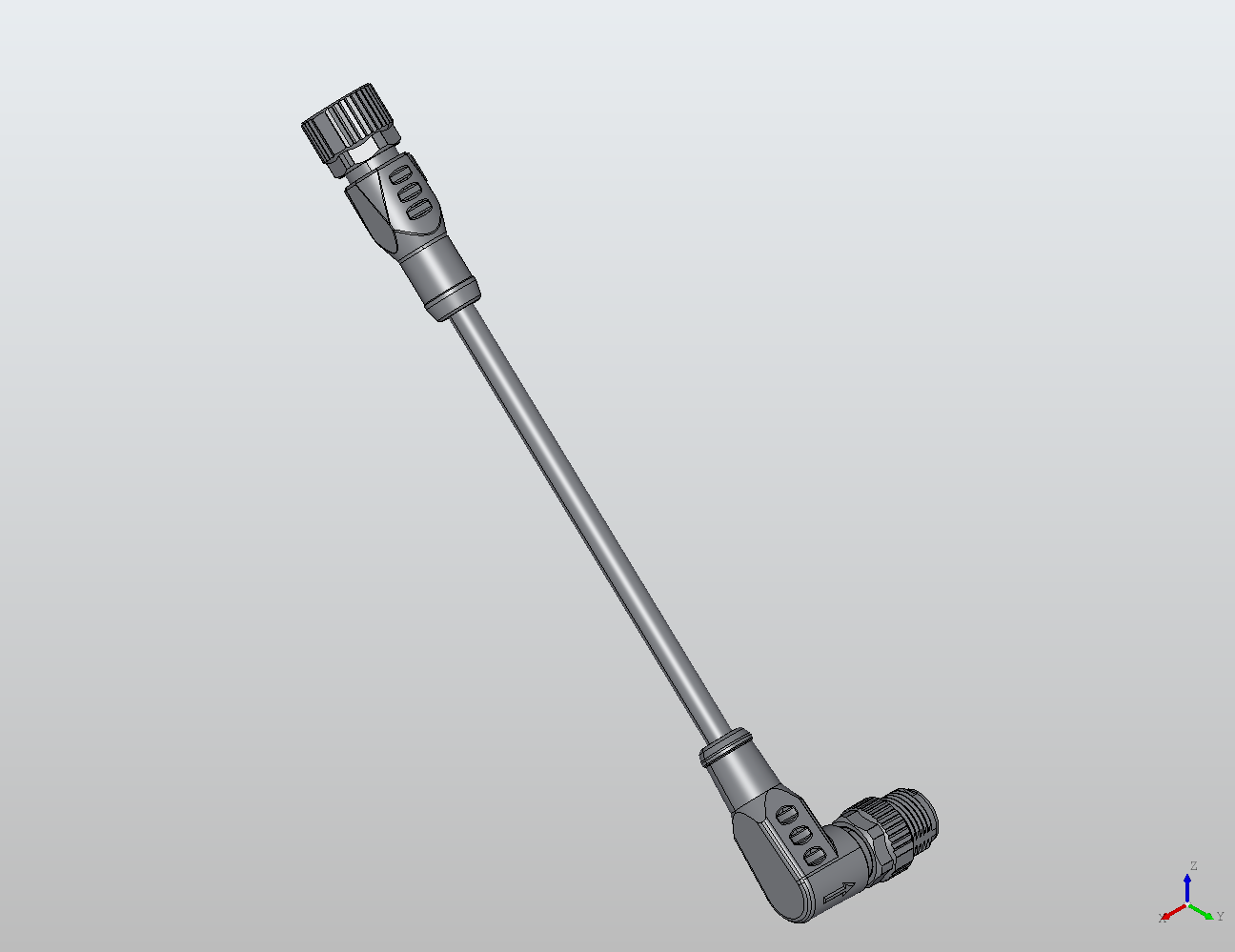

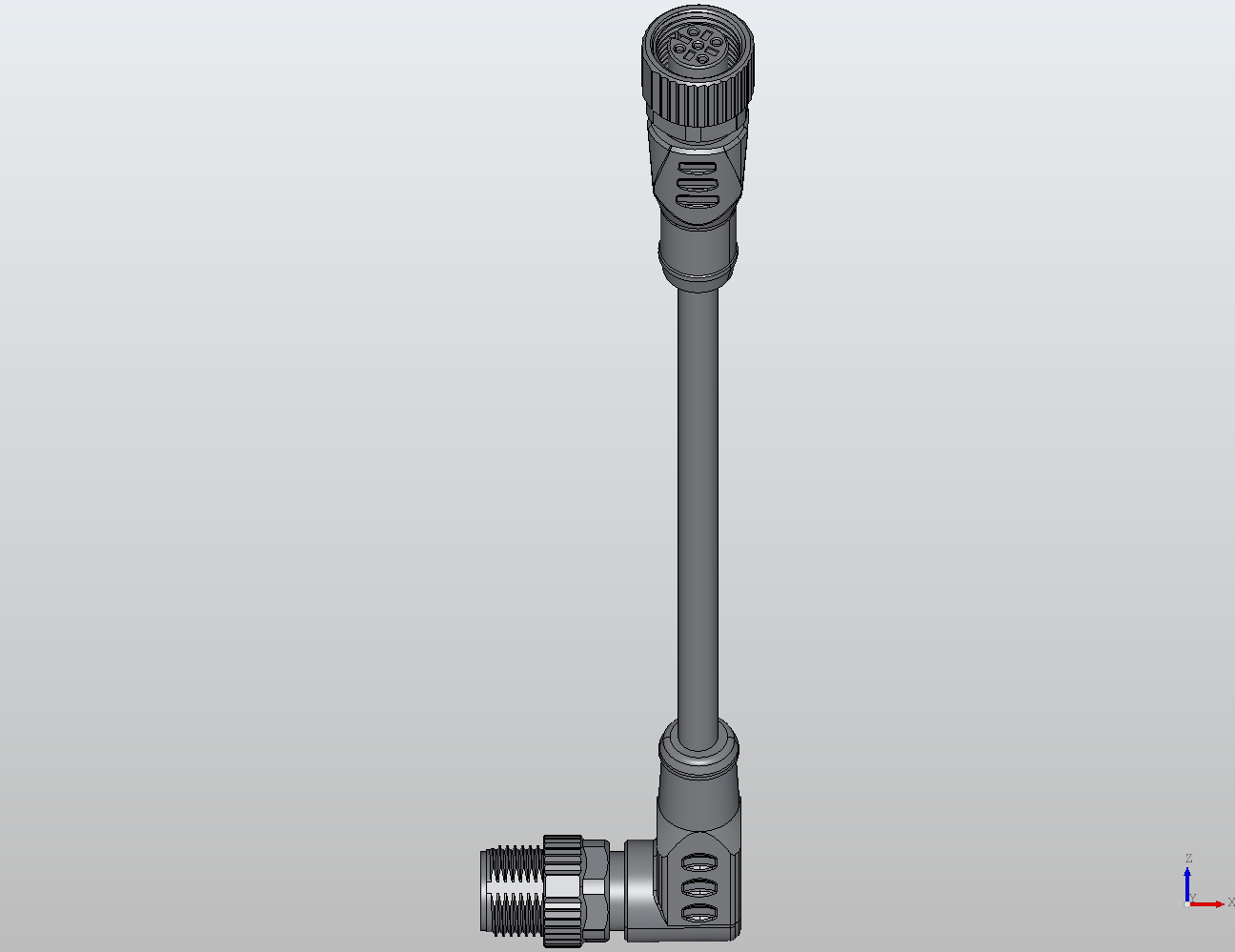

M12 Round Plug Connector M12-M12 Connection Cable 90°/Straight Male/Female 940221
940221
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded 5-pole connector cable assembly, configured as male/female with 90°/straight orientation, provides a compact interconnect for space-constrained industrial wiring. Non-shielded construction suits general-purpose installations where EMI/RFI screening is not required, and no LED indicator is included, so status is monitored at the device or control level.
Current 12 A
Voltage 125 V AC/DC
Protection IP66
Standard IEC 61076-2-101
Shielding Yes
LED No
Lengths 30 - 200 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Male/Female |
| Poles | 5 |
| Coding | a |
| Variant Count | 25 |
| Current | 4 |
| LED | No |
| Lengths | 30, 60, 100, 150, 200 |
| Voltage | 125V AC DC |
| Direction | 90°/Straight |
| Shielded | No |
| Protection | ip66k |
