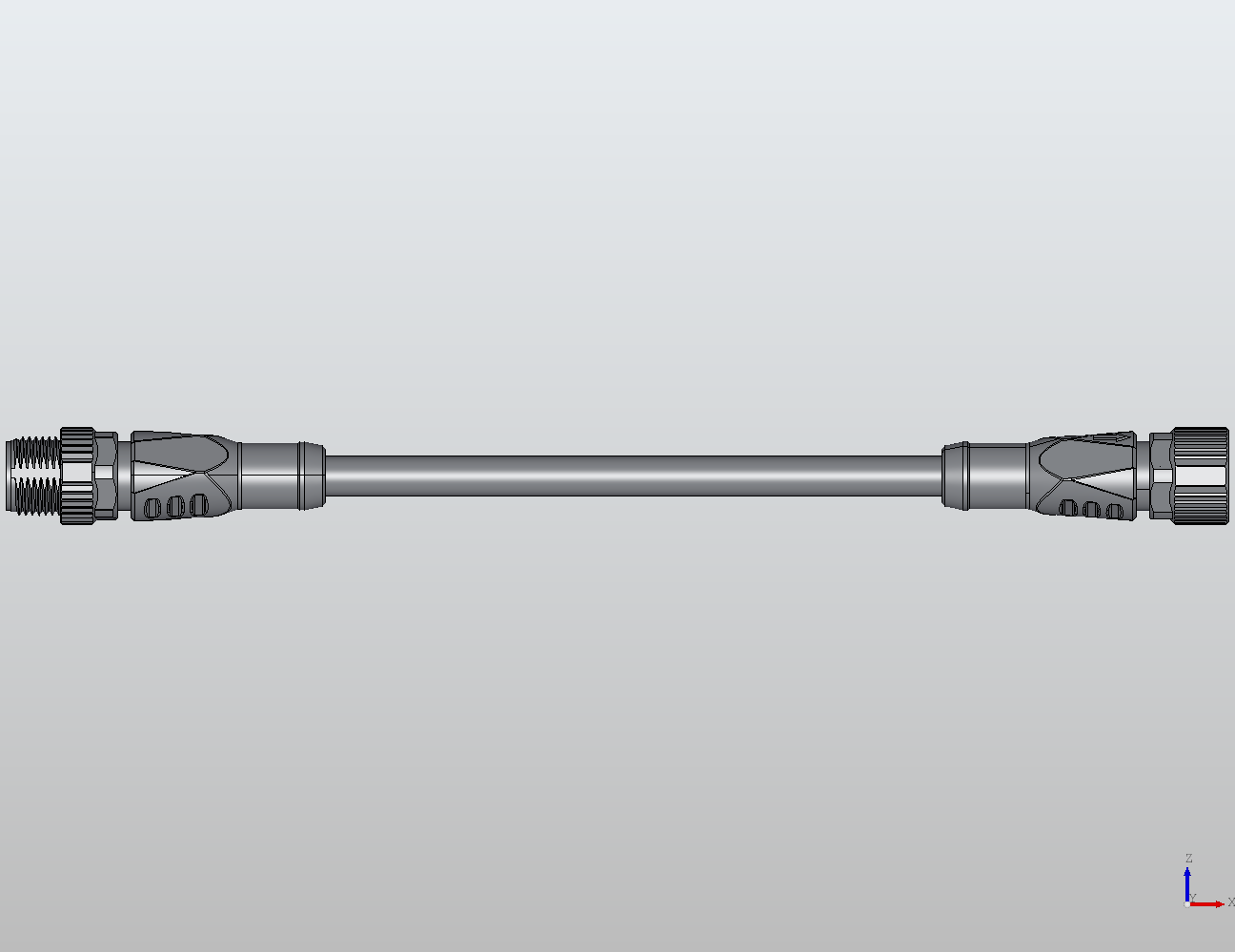

M12 Round Plug Connector M12-M12 Connection Cable (Shielded) Straight/Straight Male/Female 940501
940501
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded 4-pole male/female connector cable, straight/straight orientation, is designed for compact point-to-point interconnection between M12 interfaces in automation systems. With cable variants from 30 mm to 200 mm, it can be matched to short jumper layouts in control cabinets or machine modules.
Current 12 A
Voltage 60 V AC/DC
Protection IP65
Standard IEC 61076-2-101
Lengths 30 - 200 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Male/Female |
| Poles | 4 |
| Coding | a |
| Variant Count | 10 |
| Current | 4 |
| LED | No |
| Lengths | 30, 60, 100, 150, 200 |
| Voltage | 60V AC DC |
| Direction | Straight/Straight |
| Shielded | Yes |
| Protection | ip65 |
