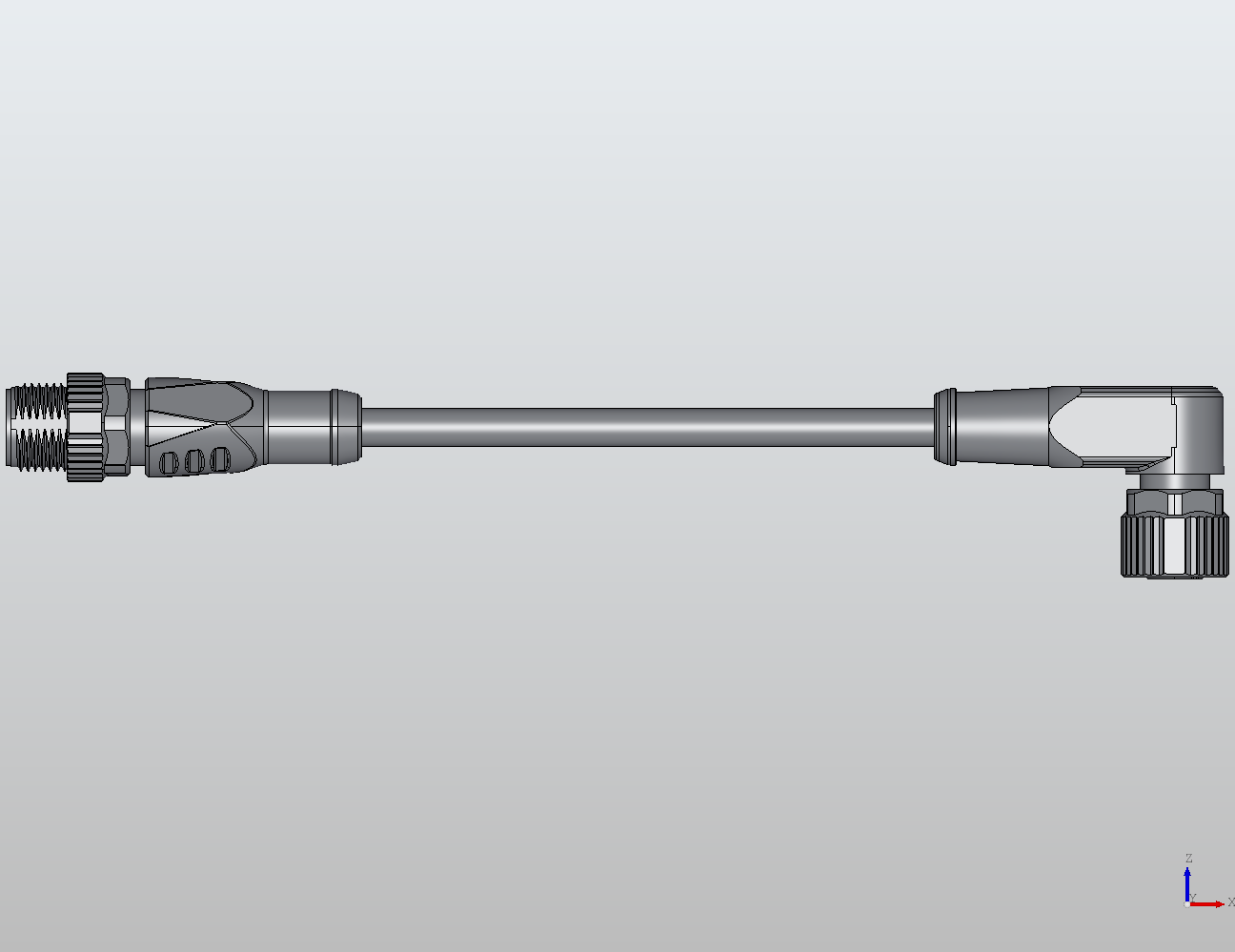

M12 Round Plug Connector M12-M12 Connection Cable Straight/90° without/with LED Male/Female 940321
940321
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded 3-pole connector cable assembly is available in male or female versions with straight or 90° orientation for flexible M12-to-M12 device interconnection. IP65 protection helps maintain performance in dusty or wet industrial environments when correctly mated, making it suitable for sensor/actuator connections and general field-level I/O links.
Current 12 A
Voltage 24 VDC
Protection IP65
Standard IEC 61076-2-101
Shielding Yes
Lengths 30 - 200 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Male/Female |
| Poles | 3 |
| Coding | a |
| Variant Count | 25 |
| Current | 4 |
| LED | No |
| Lengths | 30, 60, 100, 150, 200 |
| Voltage | 24V DC ± 25 |
| Direction | Straight/90 |
| Shielded | No |
| Protection | ip65 |
