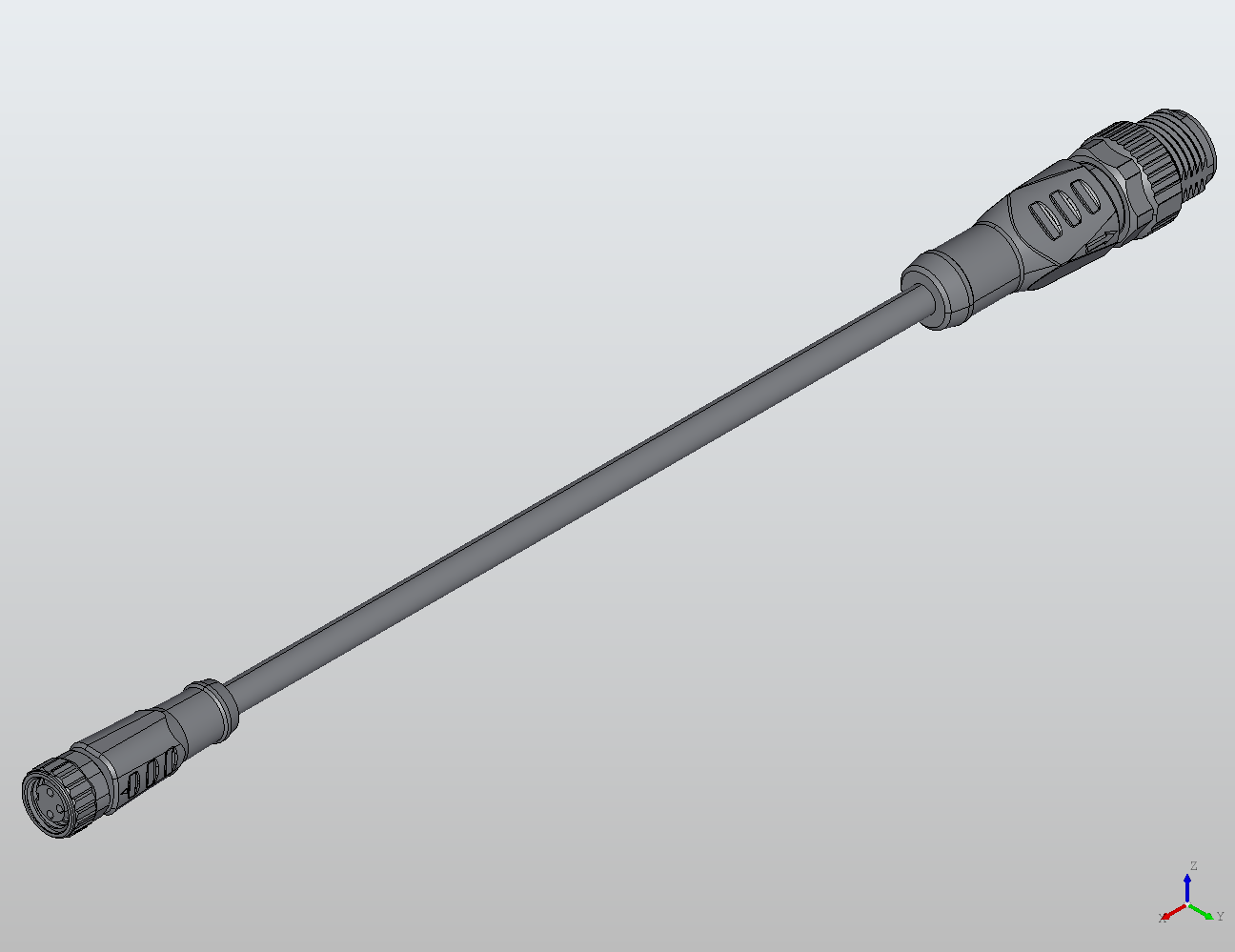

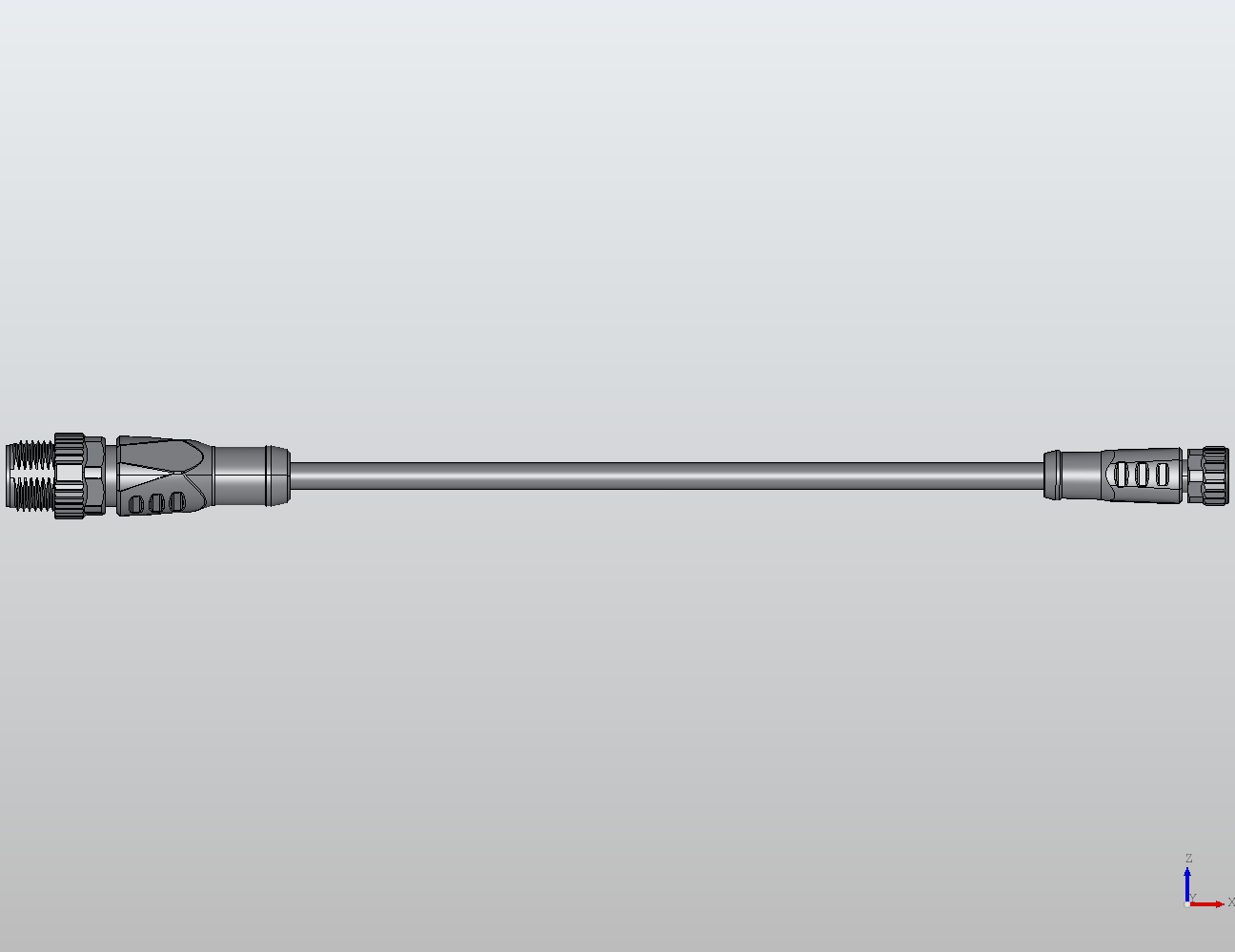

M12 Round Plug Connector M12-M8 Connection Cable Straight/Straight Male/Female 940561
940561
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 to M8 A-coded 3-pole connector cable with male/female interfaces and straight/straight orientation (SKU 940561) provides a compact adapter link for mixed-port devices in automation systems. Non-shielded construction is suitable for standard sensor/actuator wiring and low-noise control circuits where dedicated EMI/RFI shielding is not required, and no LED is included, so status is monitored at the device or I/O level.
Current 8 A
Voltage 50 V AC/DC
Protection IP65
Standard IEC 61076-2-101, IEC 61076-2-104
Shielding Yes
Lengths 30 - 200 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Male/Female |
| Poles | 3 |
| Coding | a |
| Variant Count | 40 |
| Current | 4 |
| LED | No |
| Lengths | 30, 60, 100, 150, 200 |
| Voltage | 50V AC DC |
| Direction | Straight/Straight |
| Shielded | No |
| Protection | ip65 |
