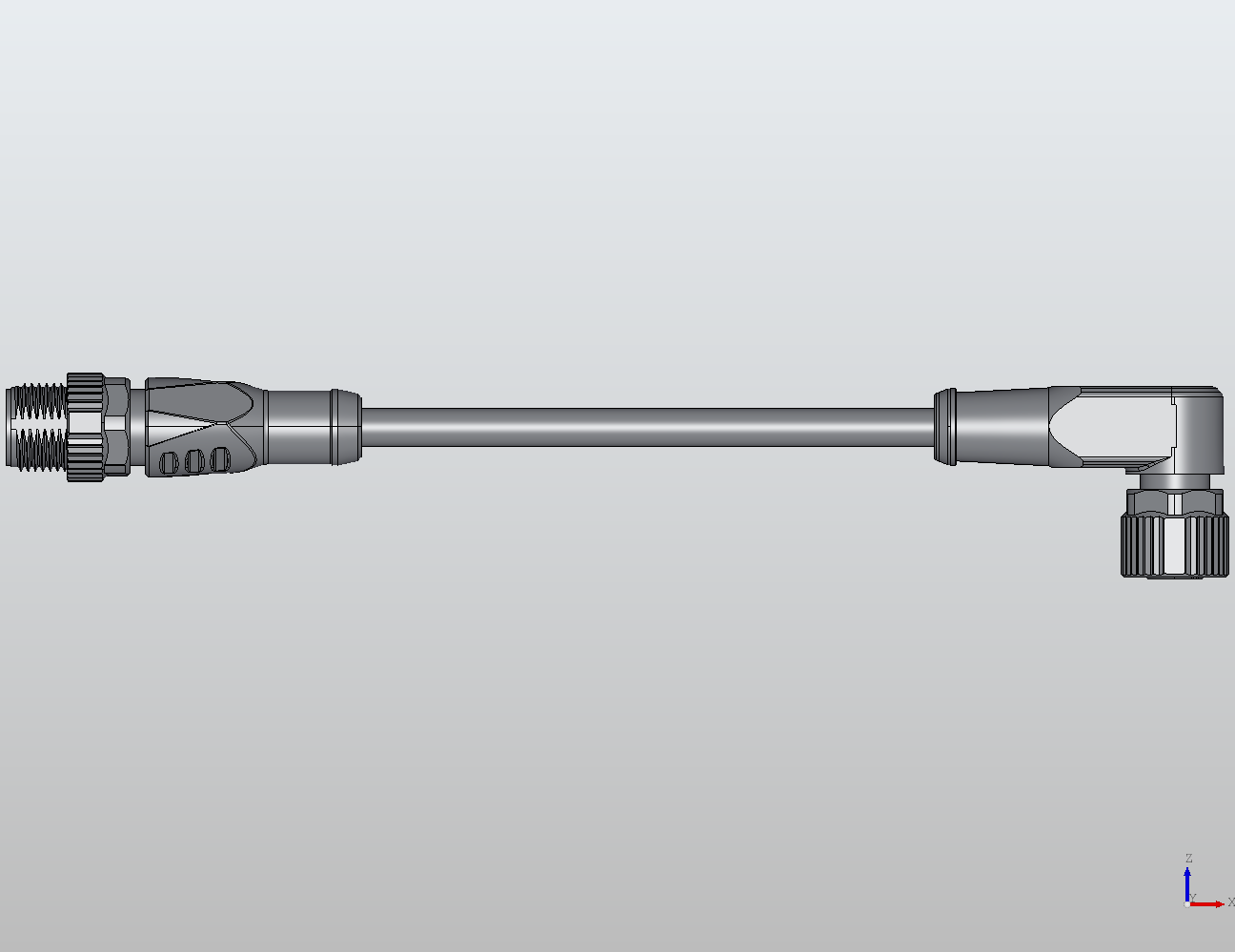

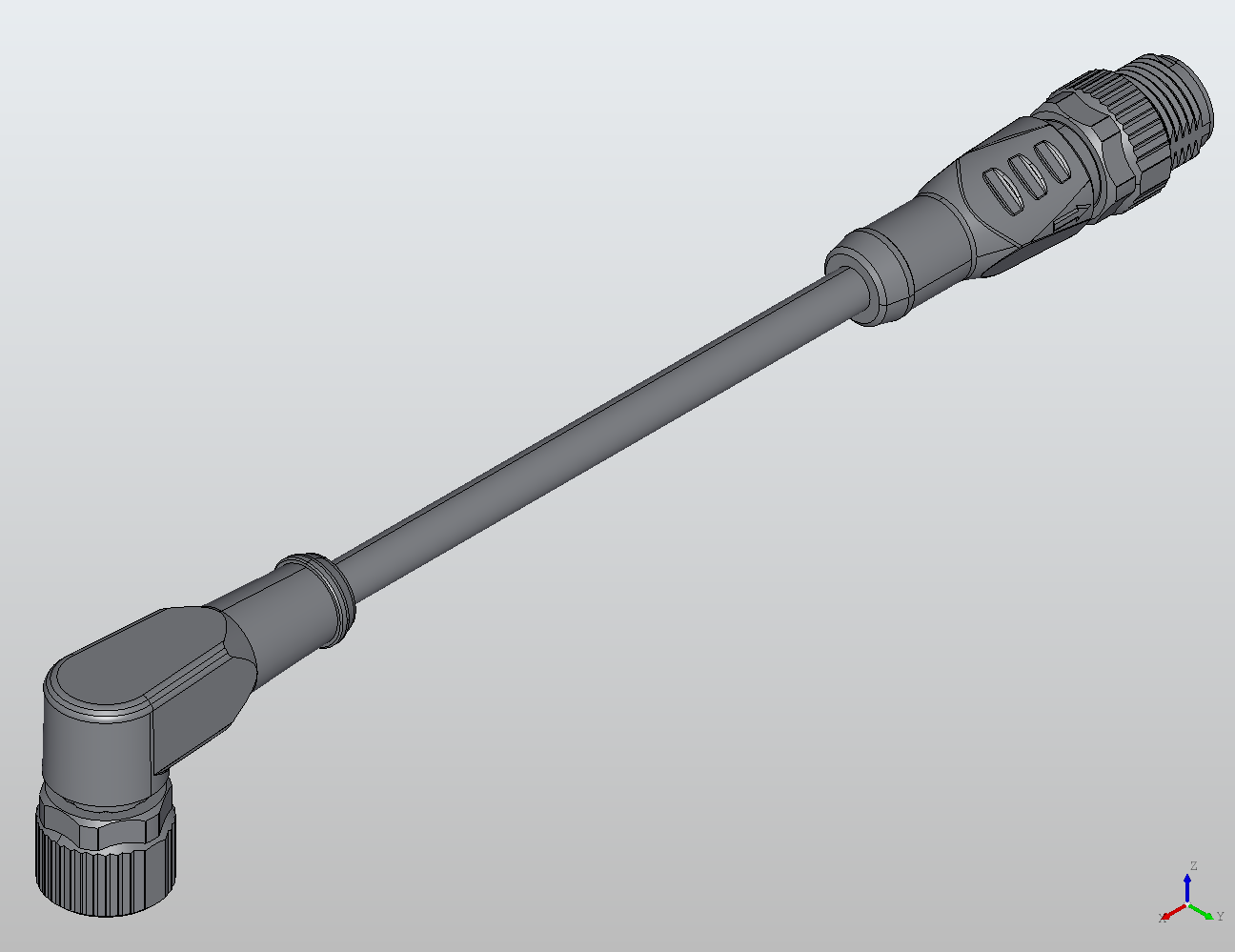

M12 Round Plug Connector M12-M8/M12 Connection Cable Straight/90° without/with LED Male/Female 940381
940381
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded, 3-pole male/female connector cable assemblies are available in straight or 90° orientations, with M12-to-M8 or M12-to-M12 interfaces to match mixed device layouts. Non-shielded construction suits standard sensor/actuator wiring and general control I/O where additional EMI/RFI mitigation is not required, and the specified version is supplied without LED indication.
Current 12 A
Voltage 24 VDC
Protection IP65
Standard IEC 61076-2-101, IEC 61076-2-104
Shielding Yes
Lengths 30 - 200 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Male/Female |
| Poles | 3 |
| Coding | a |
| Variant Count | 25 |
| Current | 4 |
| LED | No |
| Lengths | 30, 60, 100, 150, 200 |
| Voltage | 24V DC ± 25 |
| Direction | Straight/90 |
| Shielded | No |
| Protection | ip65 |
