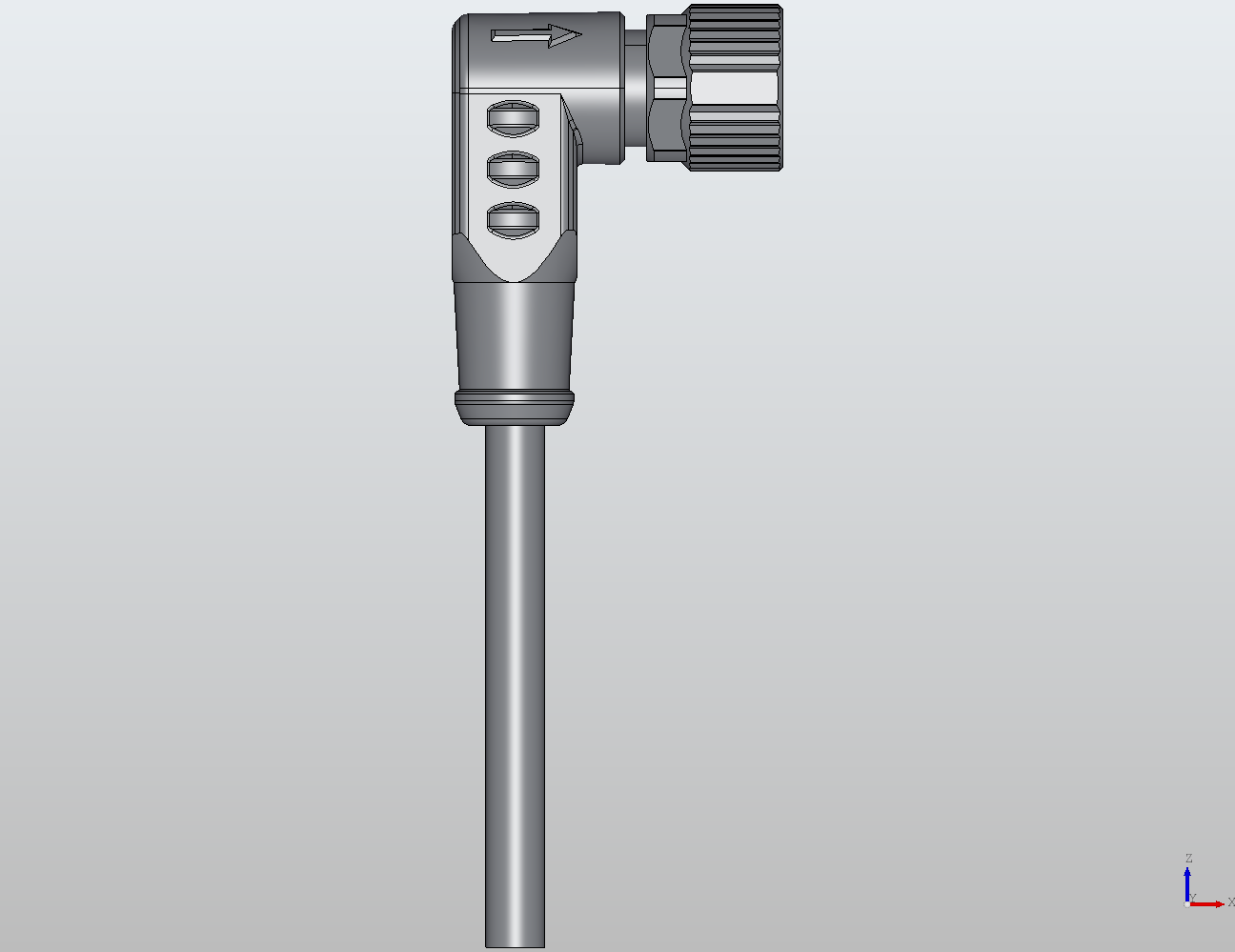

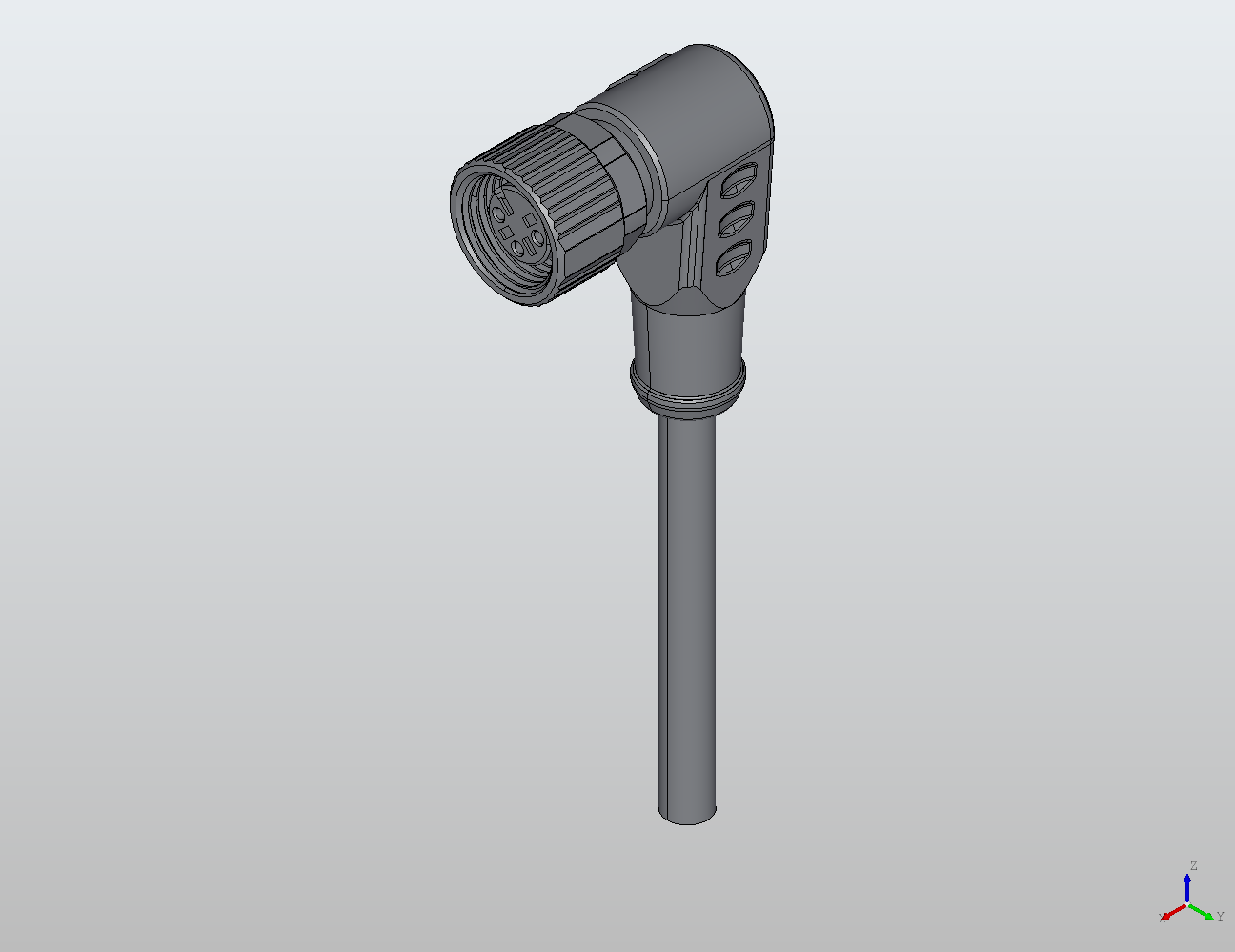

M12 Round Plug Connector Open Ended Wire 90° Female 912321
912321
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded female connector in a 90° angled orientation with 3 poles is designed for compact routing in machine and panel installations. Open-ended wire configuration simplifies integration into custom harnesses or field wiring layouts when fixed cable termination is preferred.
Current 12 A
Voltage 250 V AC/DC
Protection IP65
Standard IEC 61076-2-101
Shielding Yes
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Female |
| Poles | 3 |
| Coding | a |
| Variant Count | 25 |
| Current | 4 |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
| Voltage | 250V AC DC |
| Direction | 90° |
| Shielded | No |
| Protection | ip65 |
