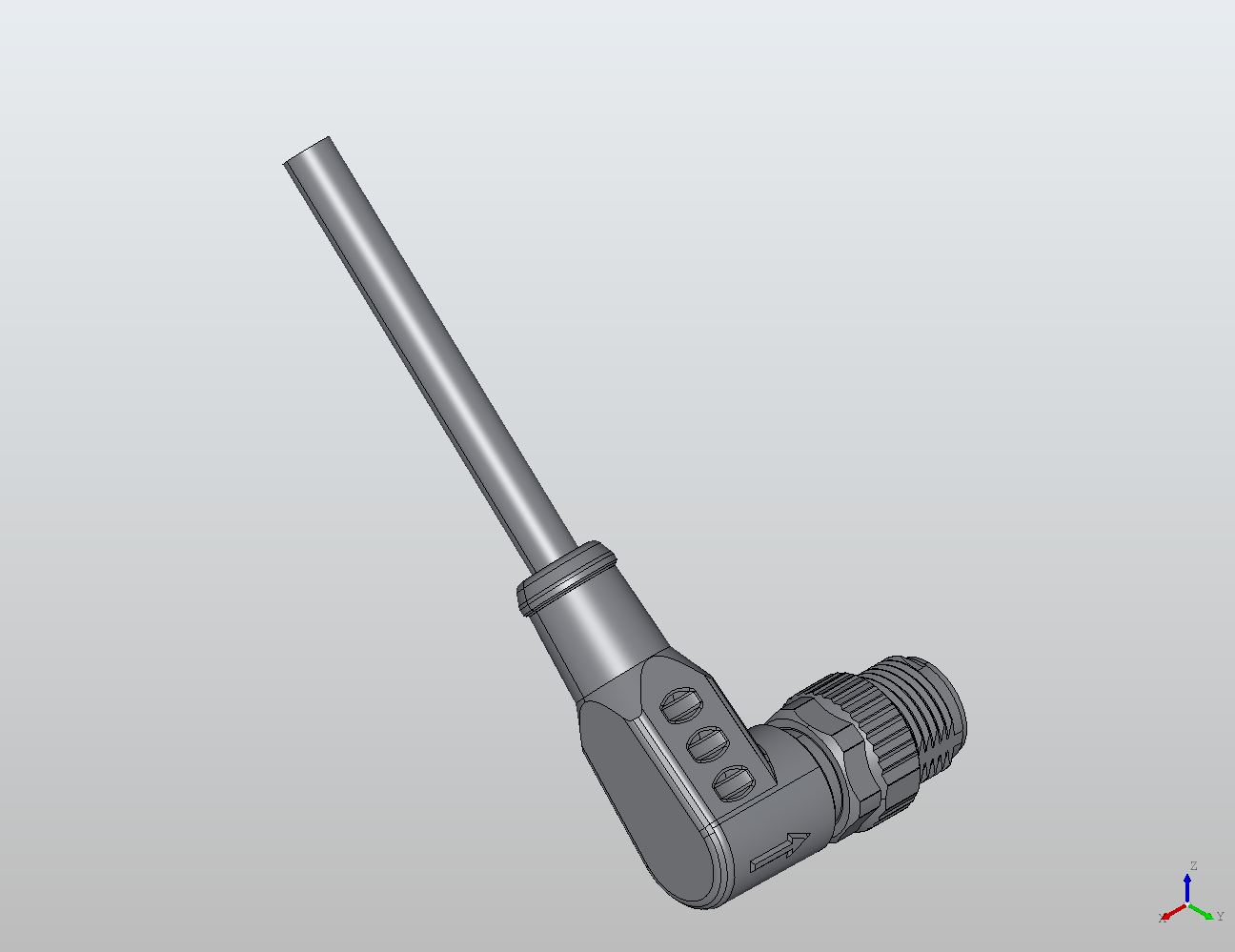

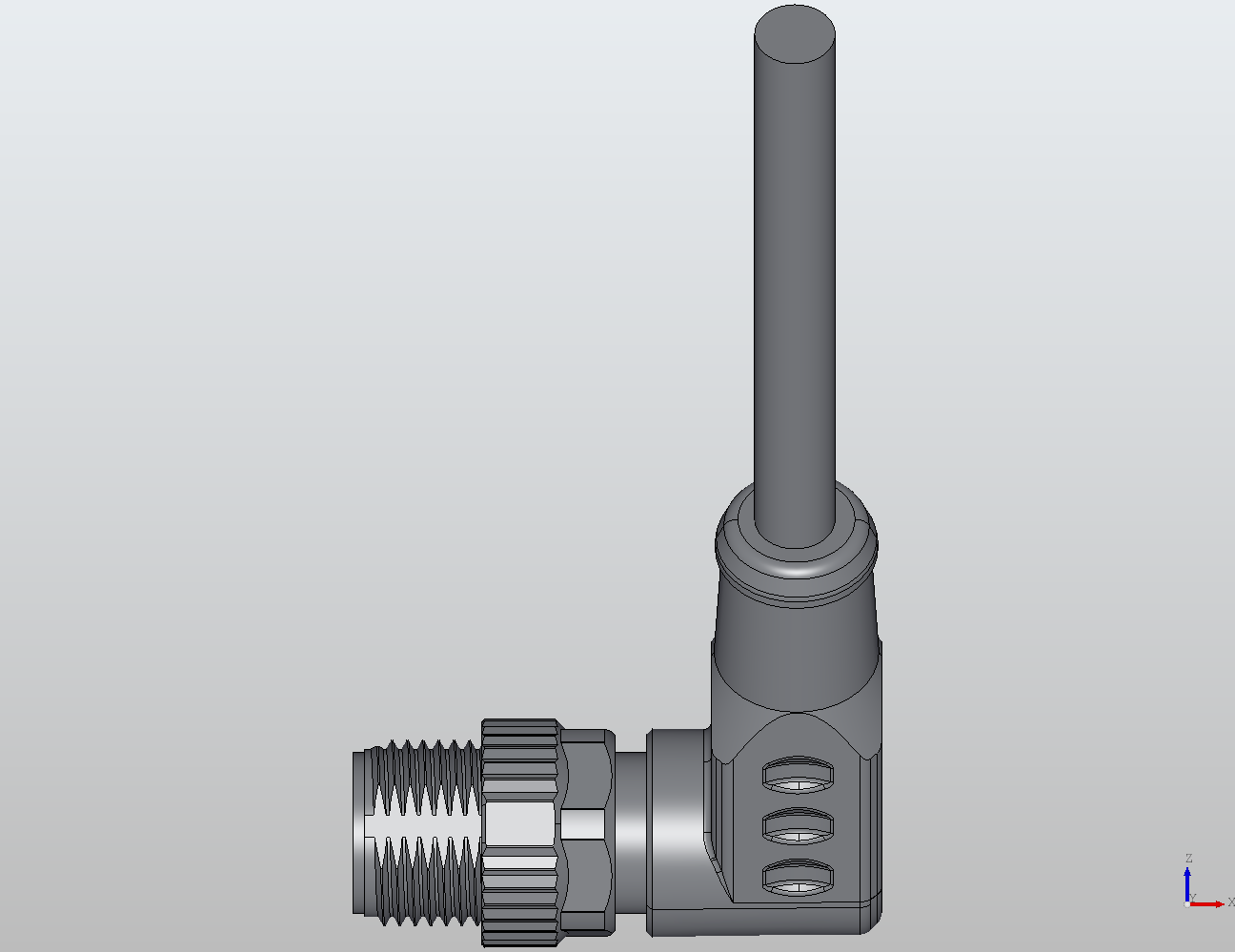

M12 Round Plug Connector Open Ended Wire 90° Male 912081
912081
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded male connector in a 90° orientation with 3 poles is designed for compact right-angle routing in industrial installations. Open-ended wire configuration allows flexible integration into custom cable assemblies and control cabinets, with 25 length variants from 150 mm to 1000 mm to match panel and field device spacing.
Current 12 A
Voltage 250 V AC/DC
Protection IP65
Standard IEC 61076-2-101
Shielding Yes
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Male |
| Poles | 3 |
| Coding | a |
| Variant Count | 25 |
| Current | 4 |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
| Voltage | 250V AC DC |
| Direction | 90° |
| Shielded | No |
| Protection | ip65 |
