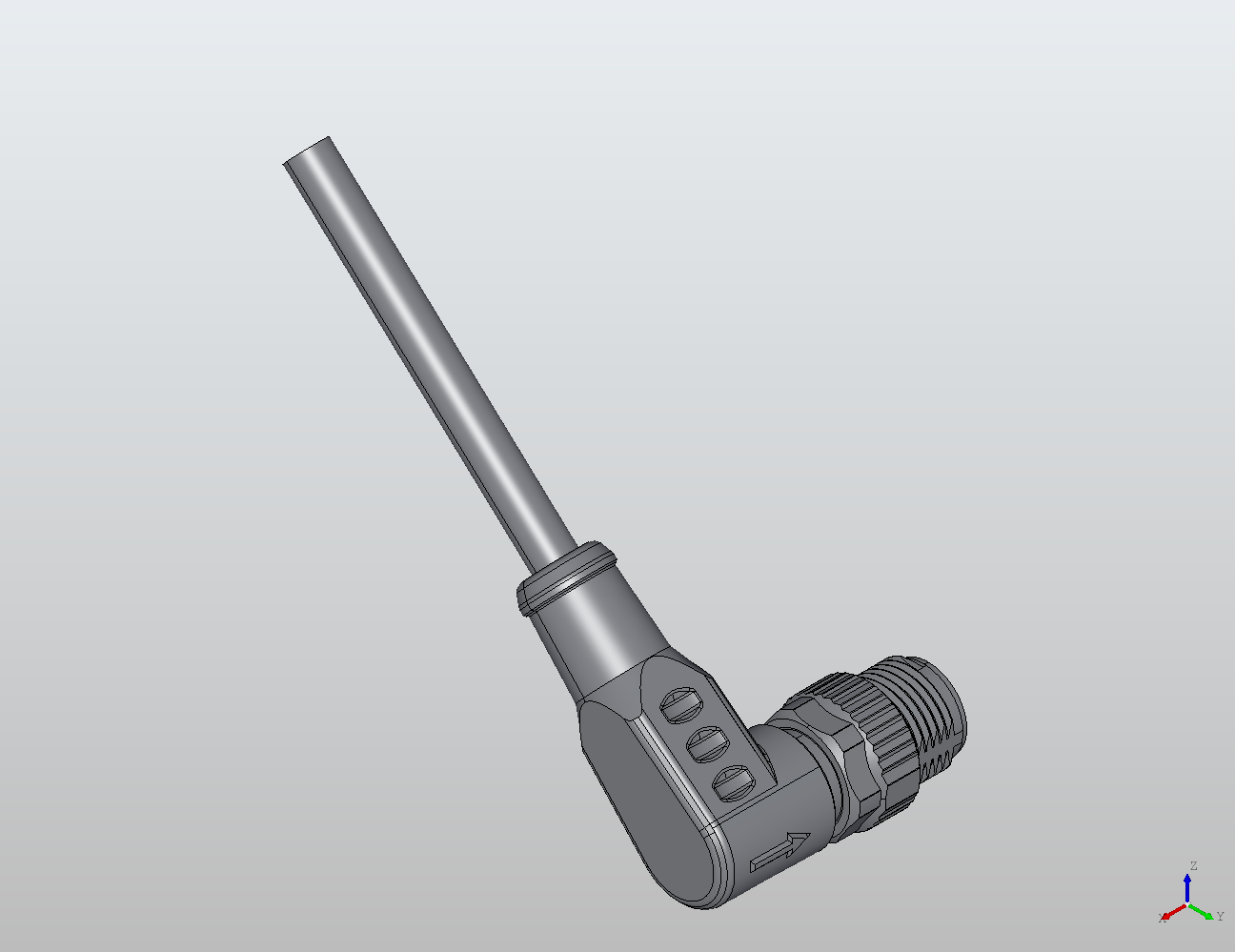

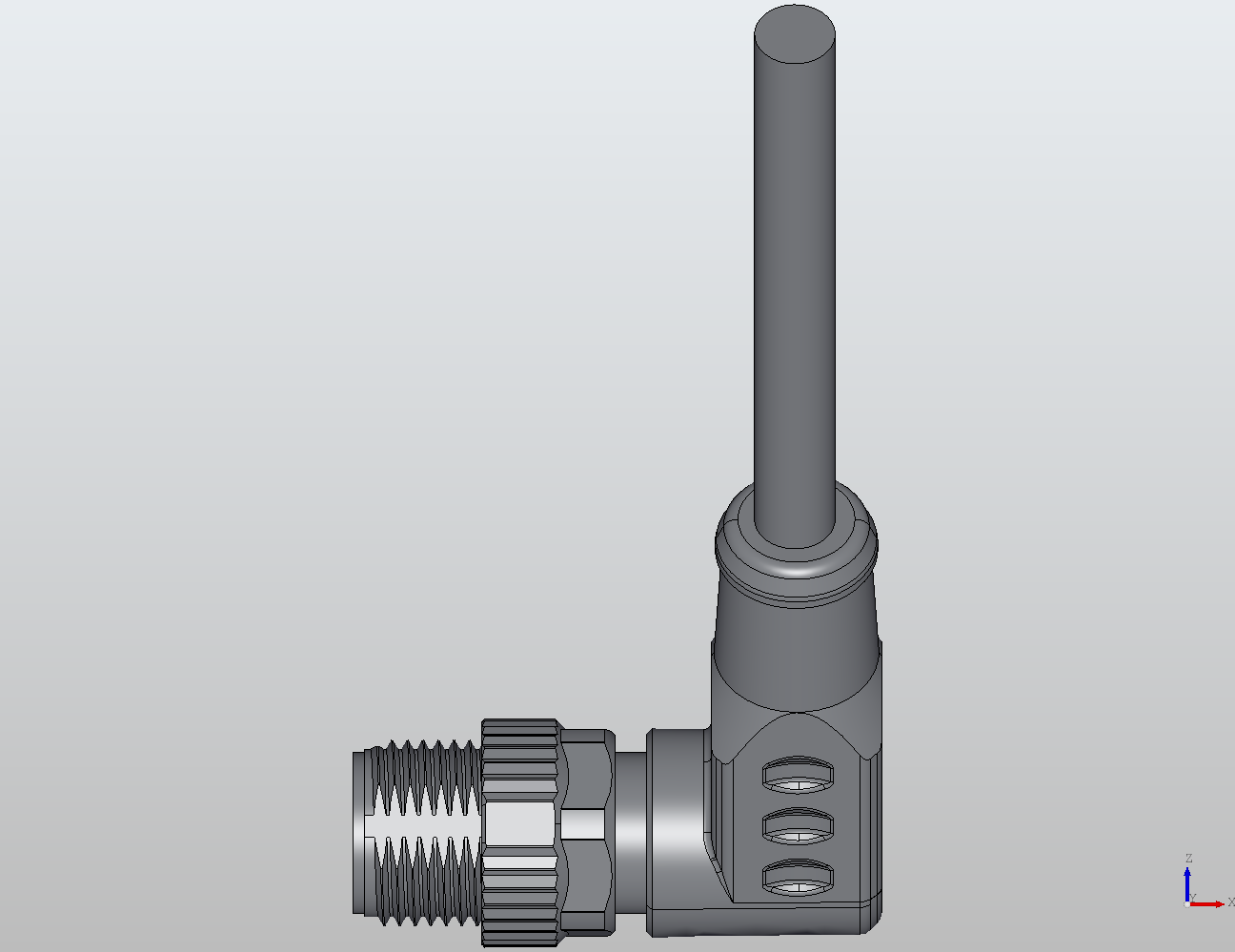

M12 Round Plug Connector Open Ended Wire 90° Male 912101
912101
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded 4-pole male connector with 90° orientation, SKU 912101, is designed as an open-ended wire interface for compact routing in machine and panel layouts. Non-shielded construction suits general-purpose sensor/actuator wiring where dedicated EMI/RFI shielding is not required, and the design is supplied without LED indication for straightforward passive connectivity.
Current 12 A
Voltage 250 V AC/DC
Protection IP65
Standard IEC 61076-2-101
Shielding Yes
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Male |
| Poles | 4 |
| Coding | a |
| Variant Count | 40 |
| Current | 4 |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
| Voltage | 250V AC DC |
| Direction | 90° |
| Shielded | No |
| Protection | ip65 |
