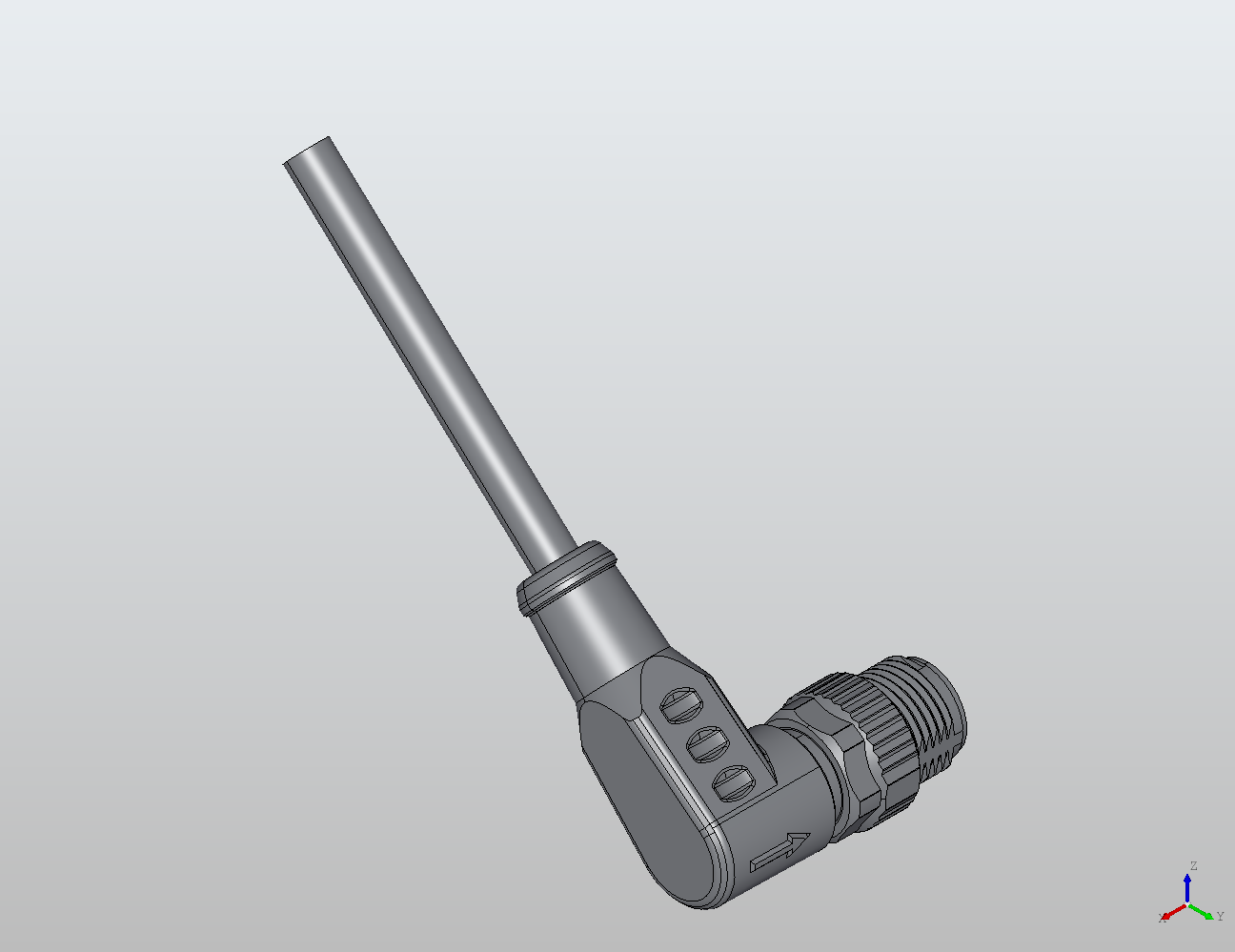

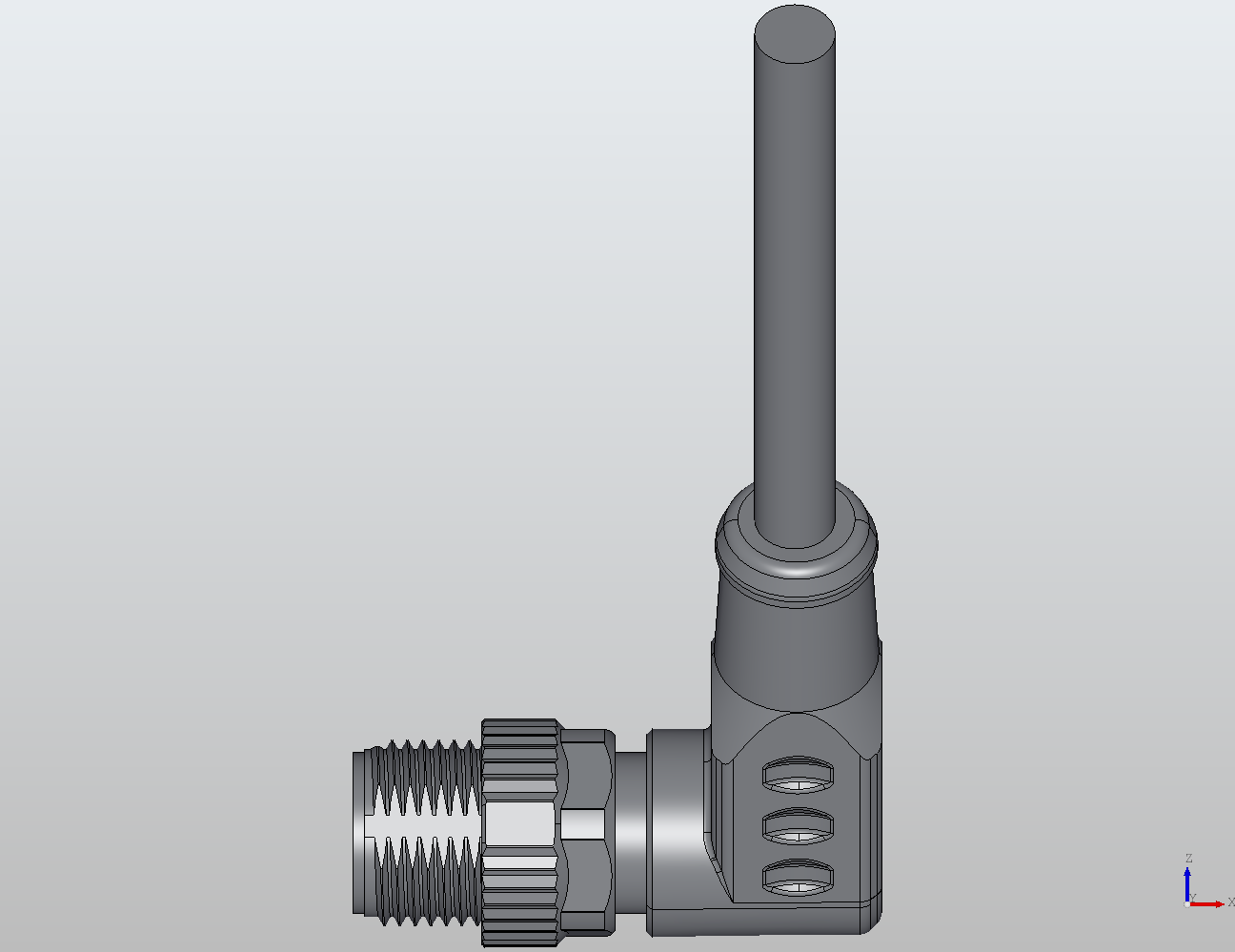

M12 Round Plug Connector Open Ended Wire 90° Male 917021
917021
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded 8-pole male connector with 90° orientation and open-ended wire design (SKU 917021) is intended for compact routing in machine and panel installations. Unshielded construction is suitable for standard control and signal circuits where dedicated EMI/RFI shielding is not required, and the non-LED format keeps integration straightforward when visual indication is handled at the device or PLC level.
Current 12 A
Voltage 30 V AC/DC
Protection IP67
Standard IEC 61076-2-101
Shielding Yes
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Male |
| Poles | 8 |
| Coding | a |
| Variant Count | 10 |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
| Voltage | 30V AC DC |
| Direction | 90° |
| Shielded | No |
| Protection | ip67 |
