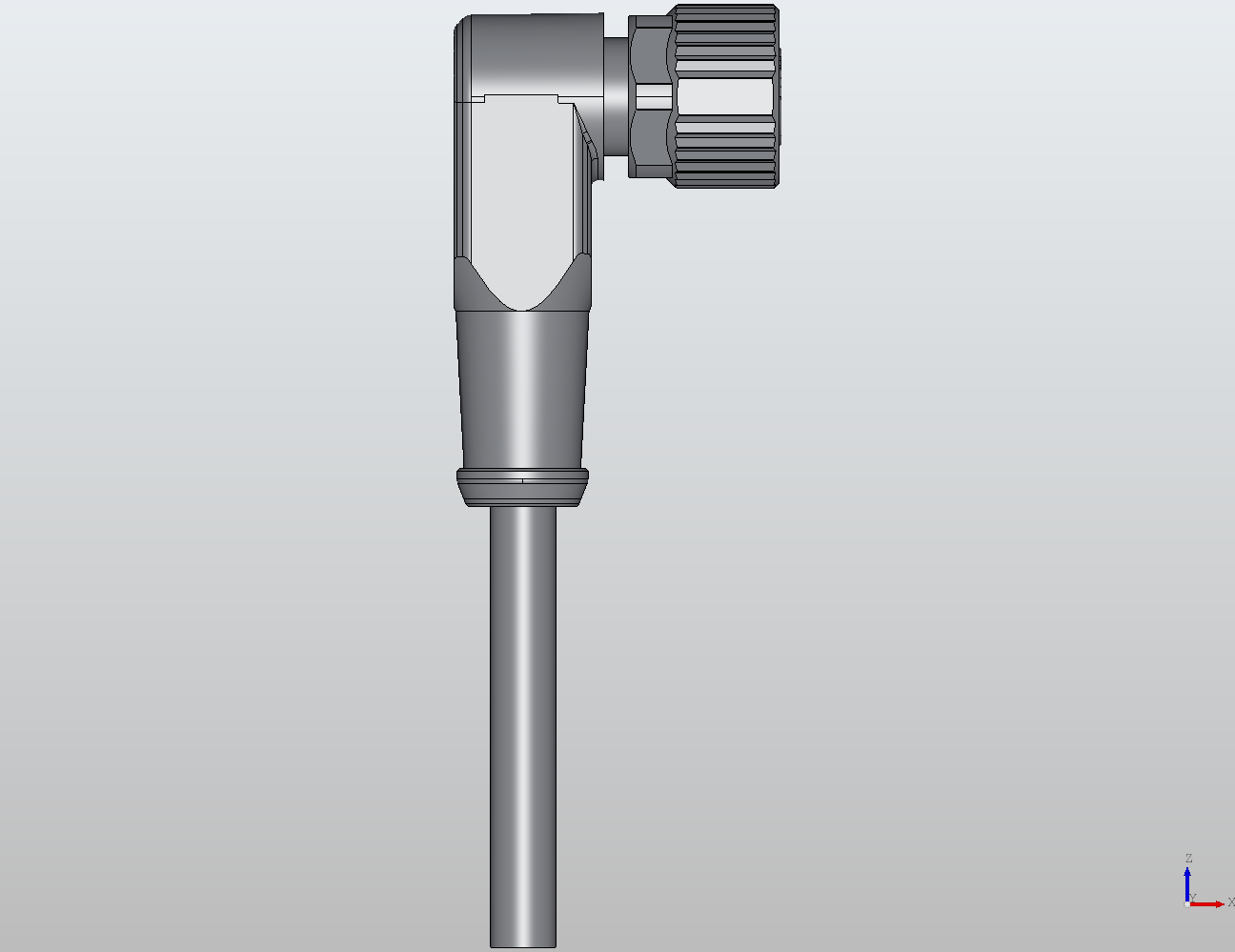

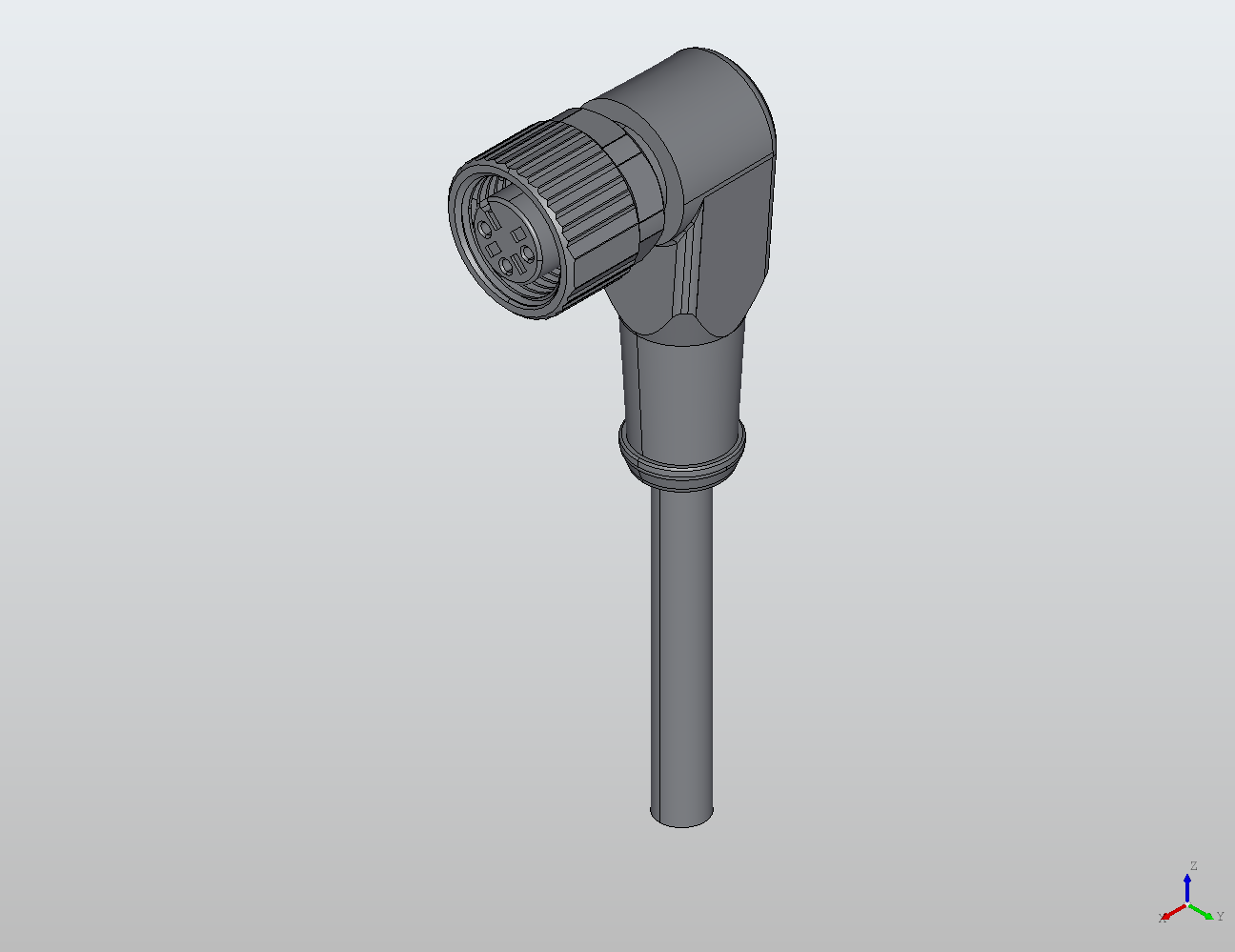

M12 Round Plug Connector Open Ended Wire 90° with LED Female 912381
912381
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded female connector in a 90° orientation with open-ended wire provides a compact right-angle interface for 3-pole device connections in industrial automation. Non-shielded construction is appropriate for standard sensor/actuator wiring and general-purpose field I/O harnessing, and it can also be used in low-noise fieldbus drop connections where shielding is not required.
Current 12 A
Voltage 24 V DC
Protection IP65
Standard IEC 61076-2-101
Shielding Yes
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Female |
| Poles | 3 |
| Coding | a |
| Variant Count | 25 |
| Current | 4 |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
| Voltage | 24V DC ± 25 |
| Direction | 90° |
| Shielded | No |
| Protection | ip65 |
