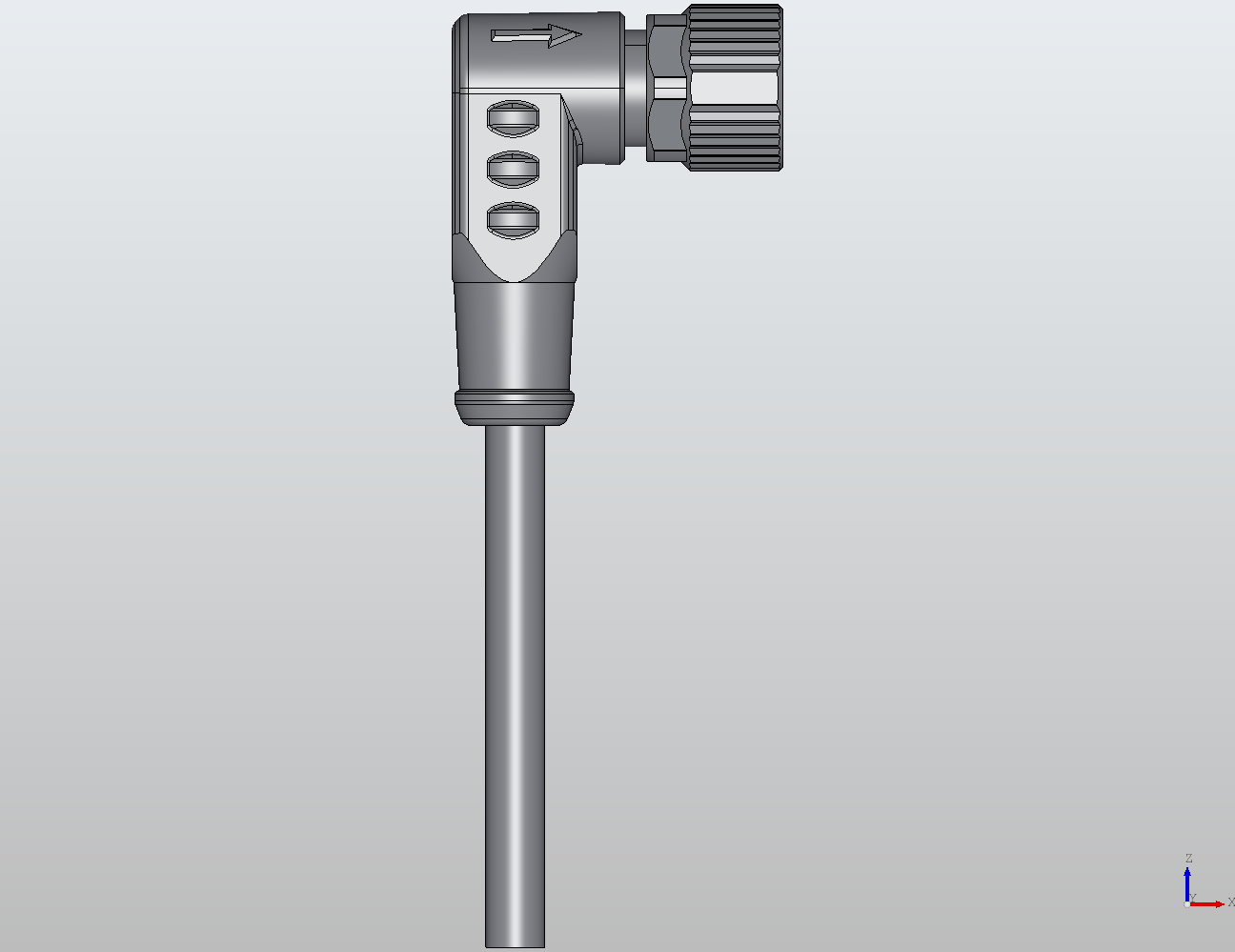

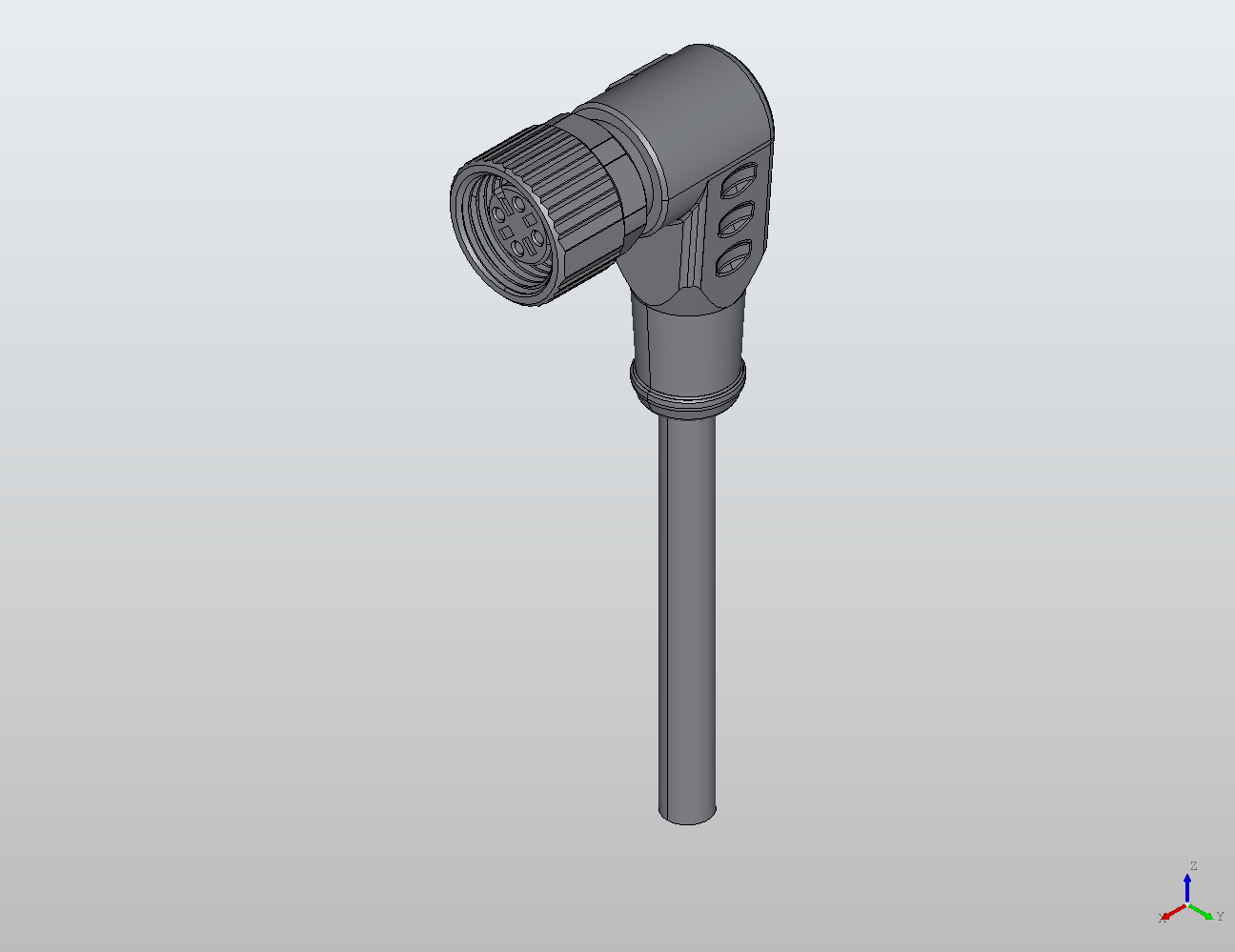

M12 Round Plug Connector Open Ended Wire (Shielded) 90° Female 913261
913261
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded female connector in a 90° orientation with 4 poles is designed as an open-ended wire plug for compact machine-side routing in automation systems. Shielded construction improves EMC performance by reducing EMI/RFI interference, helping maintain stable communication and sensor accuracy near drives, motors, and switching equipment.
Current 12 A
Voltage 125 V AC/DC
Protection IP67
Standard IEC 61076-2-101
Shielding Yes
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Female |
| Poles | 4 |
| Coding | a |
| Variant Count | 8 |
| Current | 4 |
| LED | No |
| Lengths | 150, 300, 500, 1000 |
| Voltage | 125V AC DC |
| Direction | 90° |
| Shielded | Yes |
| Protection | ip67 |
