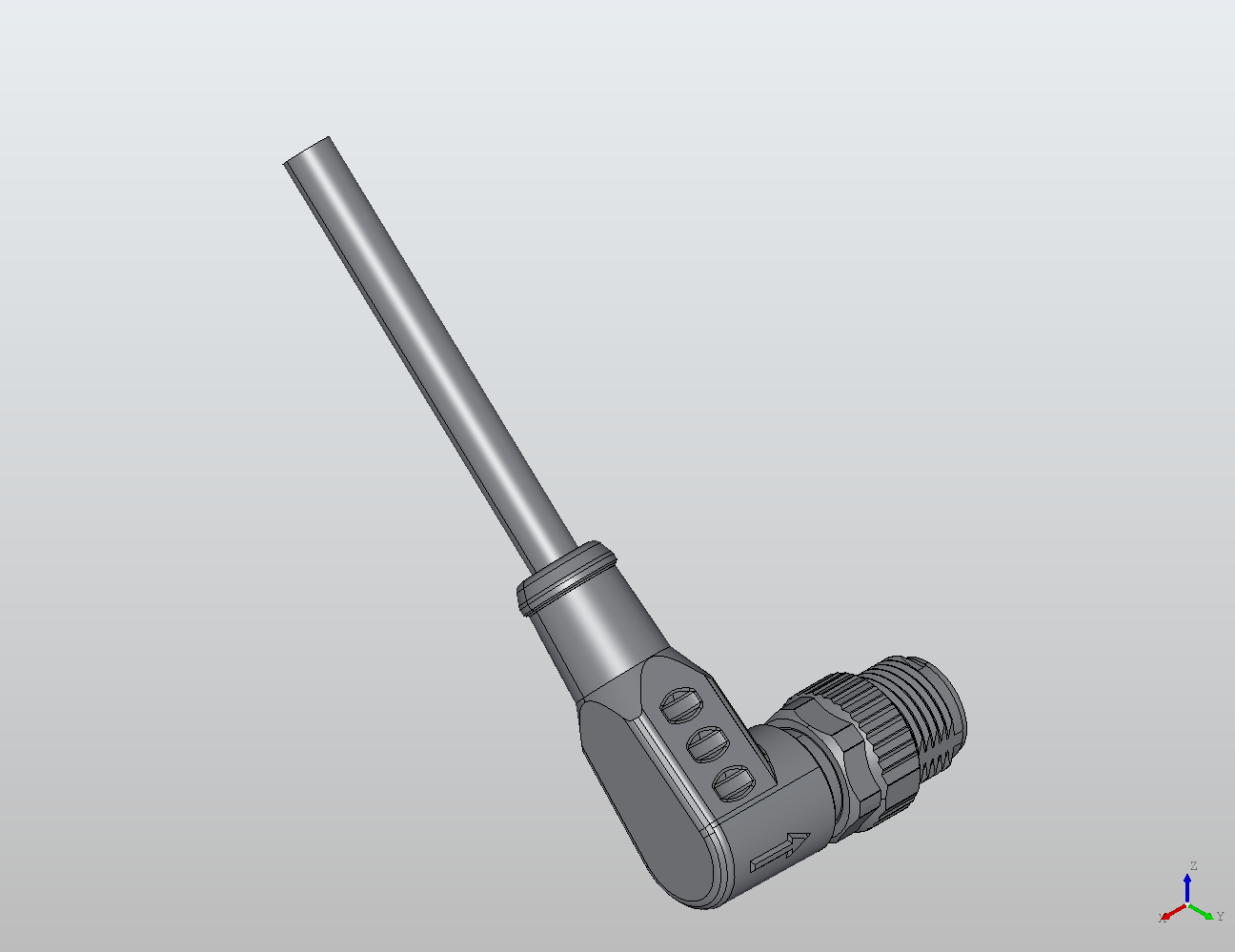

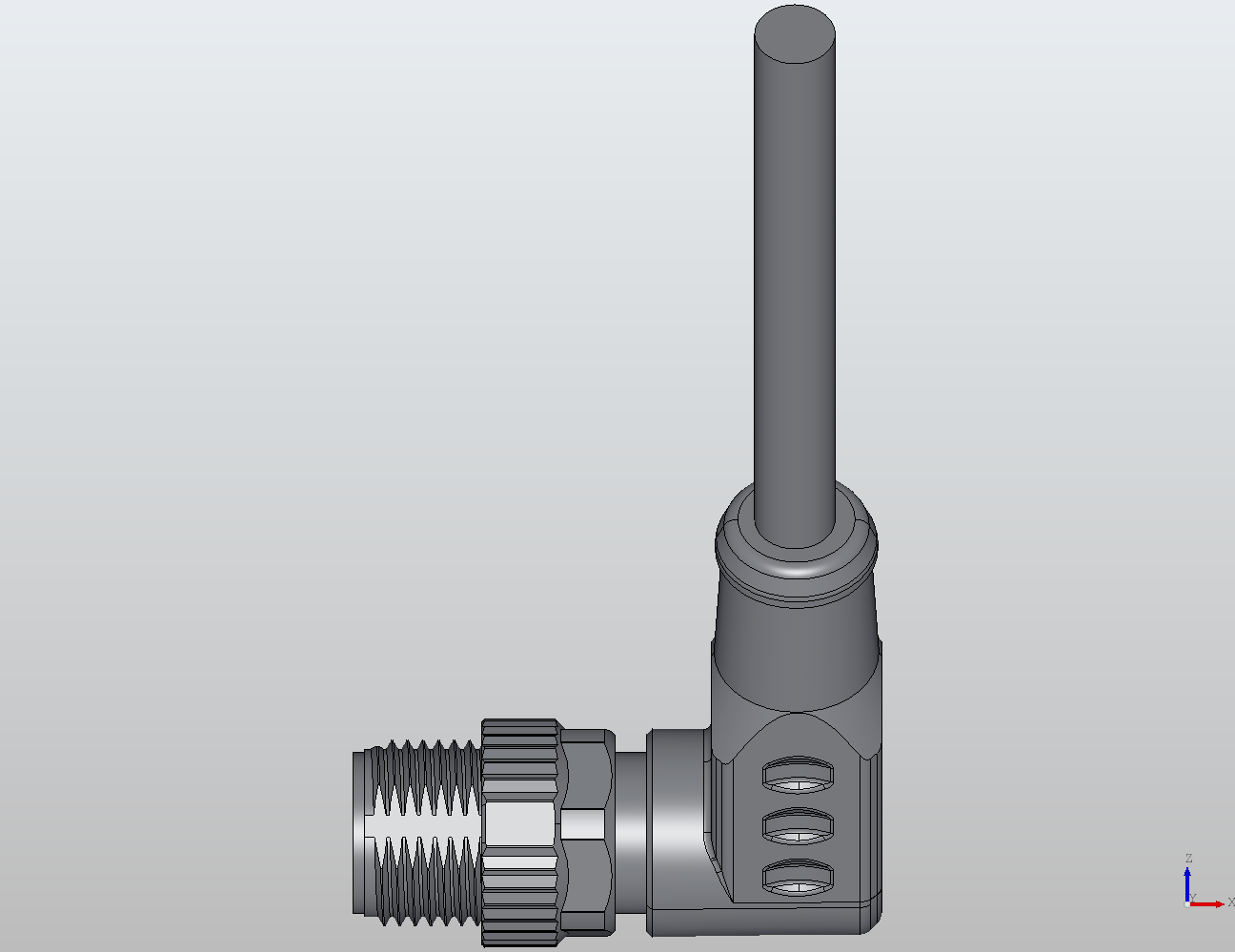

M12 Round Plug Connector Open Ended Wire (Shielded) 90° Male 913161
913161
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded 5-pole male connector in a 90° orientation, SKU 913161, is a shielded round plug with open-ended wire for flexible integration into machine and panel wiring. Designed to IEC 61076-2-101 interface requirements, it supports up to 4 A and 125 V AC/DC, with IP67 protection when properly mated for reliable operation in wet or dusty industrial areas.
Current 12 A
Voltage 125 V AC/DC
Protection IP67
Standard IEC 61076-2-101
Shielding Yes
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Male |
| Poles | 5 |
| Coding | a |
| Variant Count | 8 |
| Current | 4 |
| LED | No |
| Lengths | 150, 300, 500, 1000 |
| Voltage | 125V AC DC |
| Direction | 90° |
| Shielded | Yes |
| Protection | ip67 |
