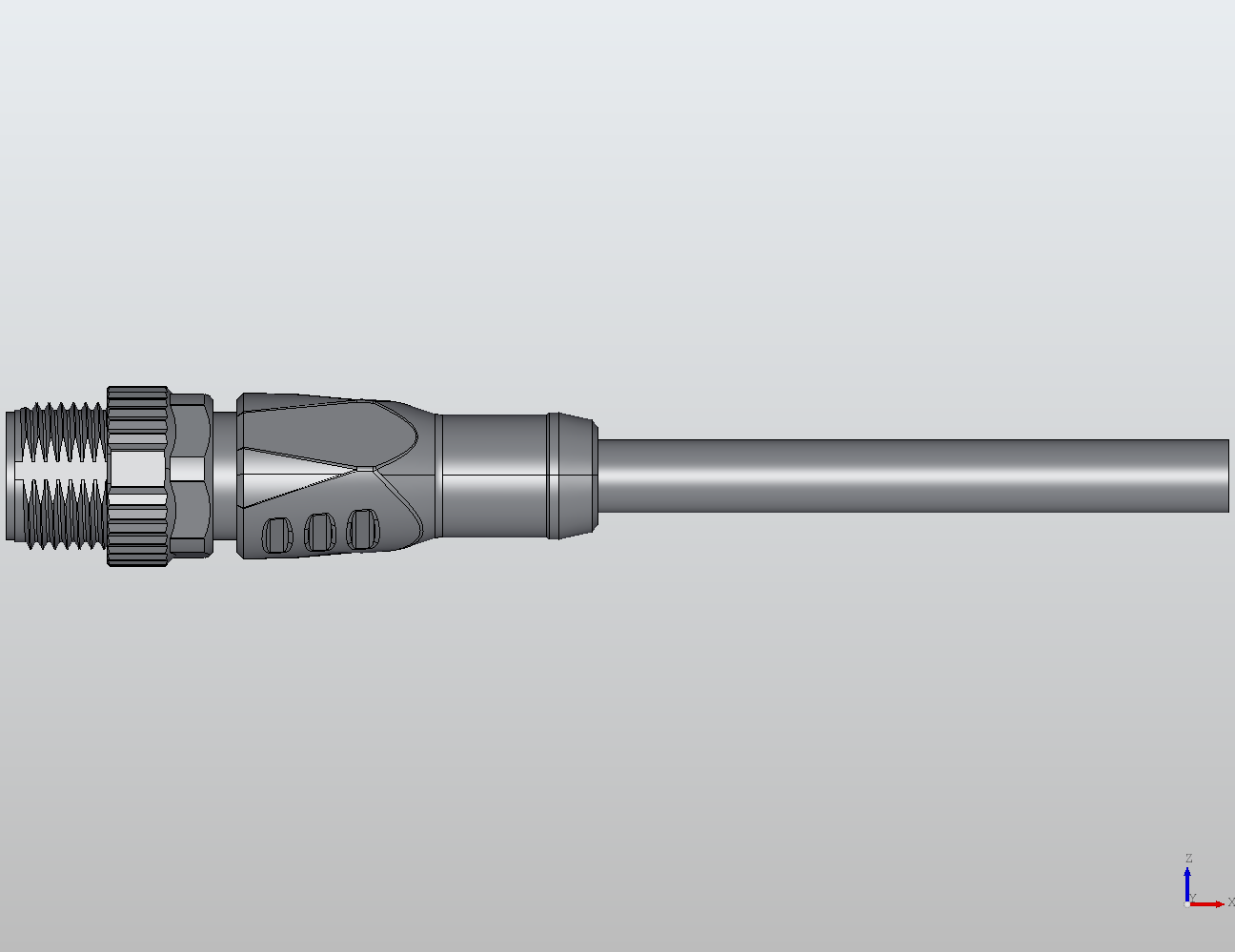

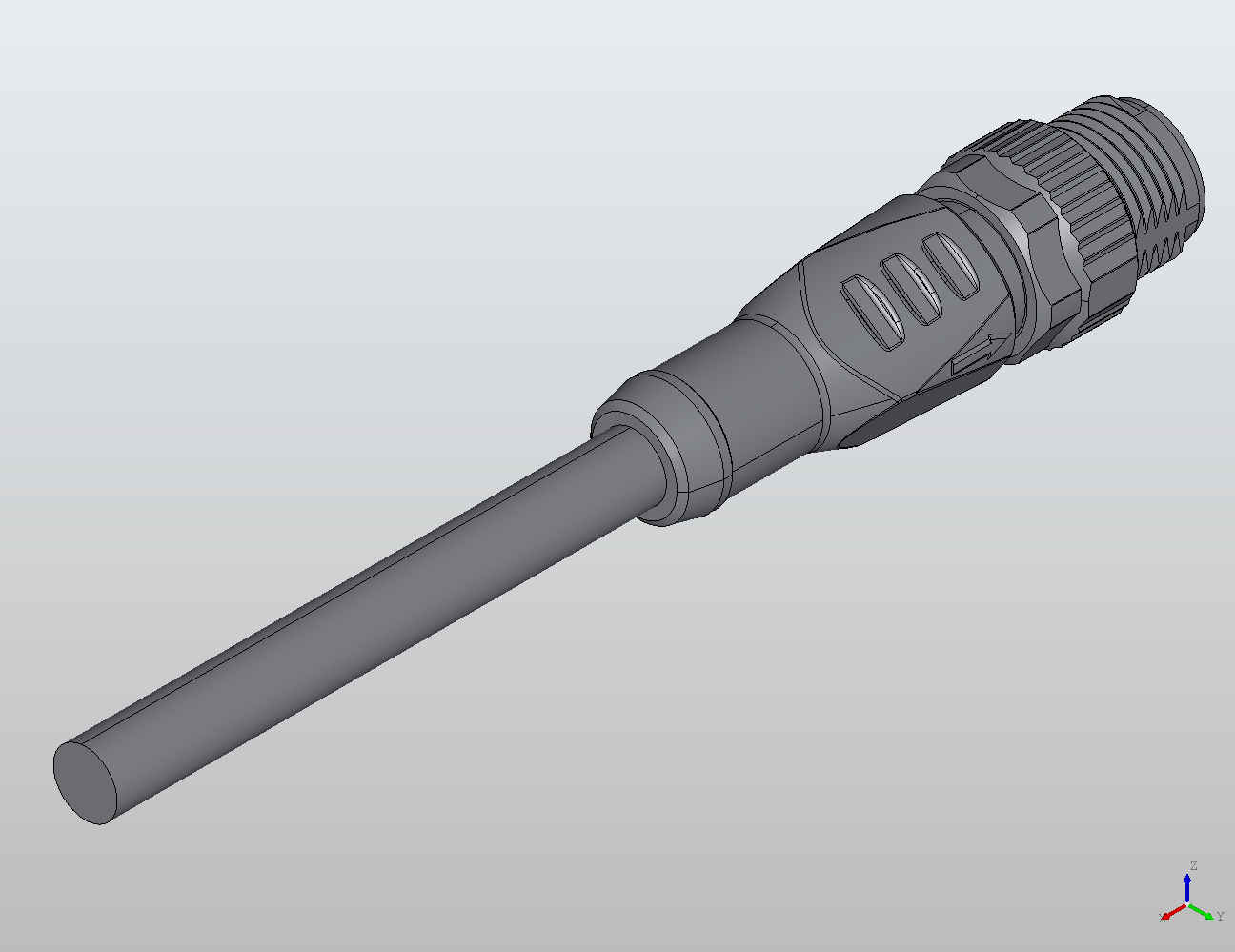

M12 Round Plug Connector Open Ended Wire (Shielded) Straight Male 919301
919301
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded male connector in a straight orientation, SKU 919301, is a 12-pole round plug with open-ended wire for flexible integration in control cabinets and machine wiring. Designed for 30 V AC/DC systems with a 2 A current rating and IP67 protection, it supports reliable low-voltage signal and power transmission in demanding industrial environments.
Current 12 A
Voltage 30 V AC/DC
Protection IP67
Standard IEC 61076-2-101
Shielding Yes
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Male |
| Poles | 12 |
| Coding | a |
| Variant Count | 8 |
| Current | 2 |
| LED | No |
| Lengths | 150, 300, 500, 1000 |
| Voltage | 30V AC DC |
| Direction | Straight |
| Shielded | Yes |
| Protection | ip67 |
