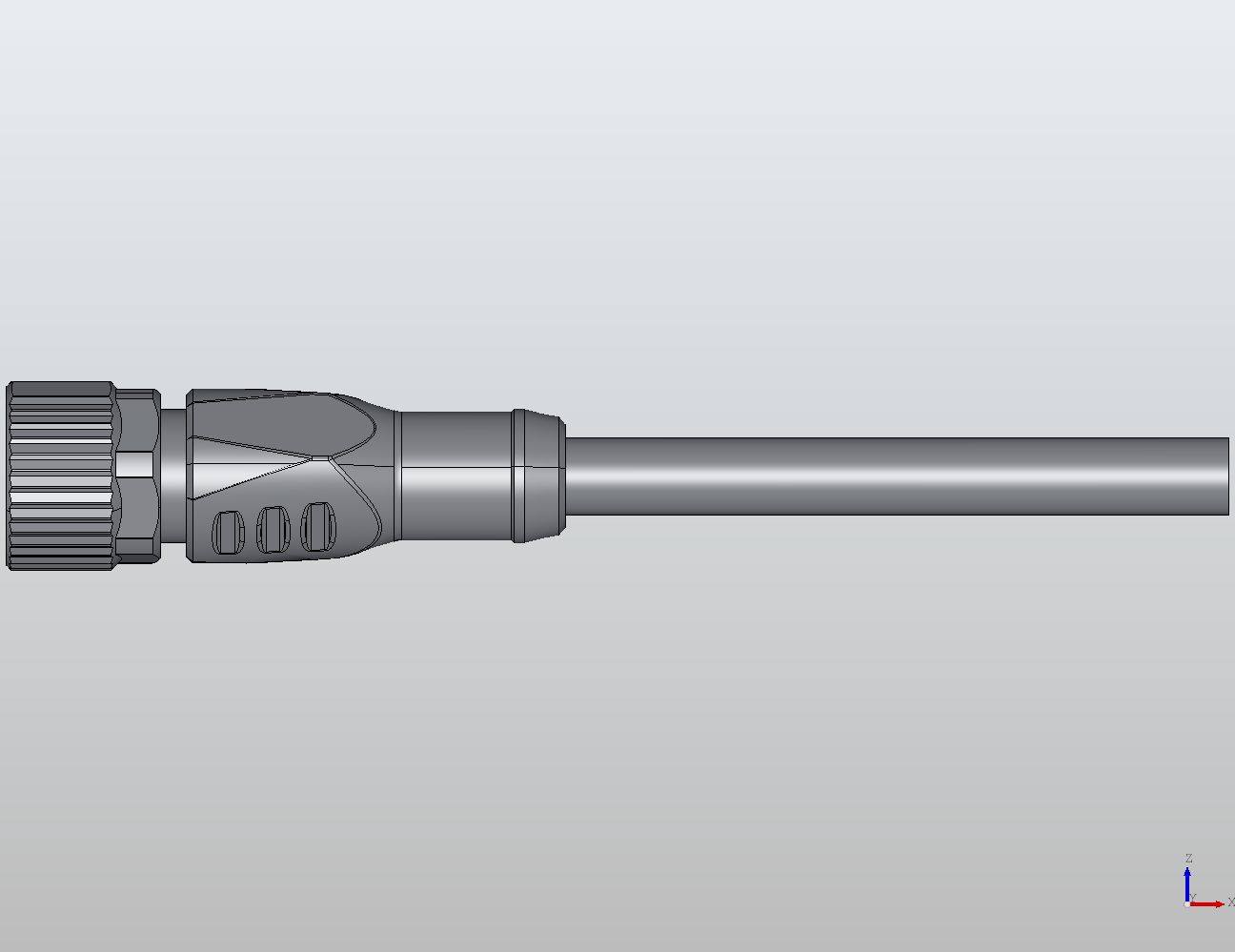

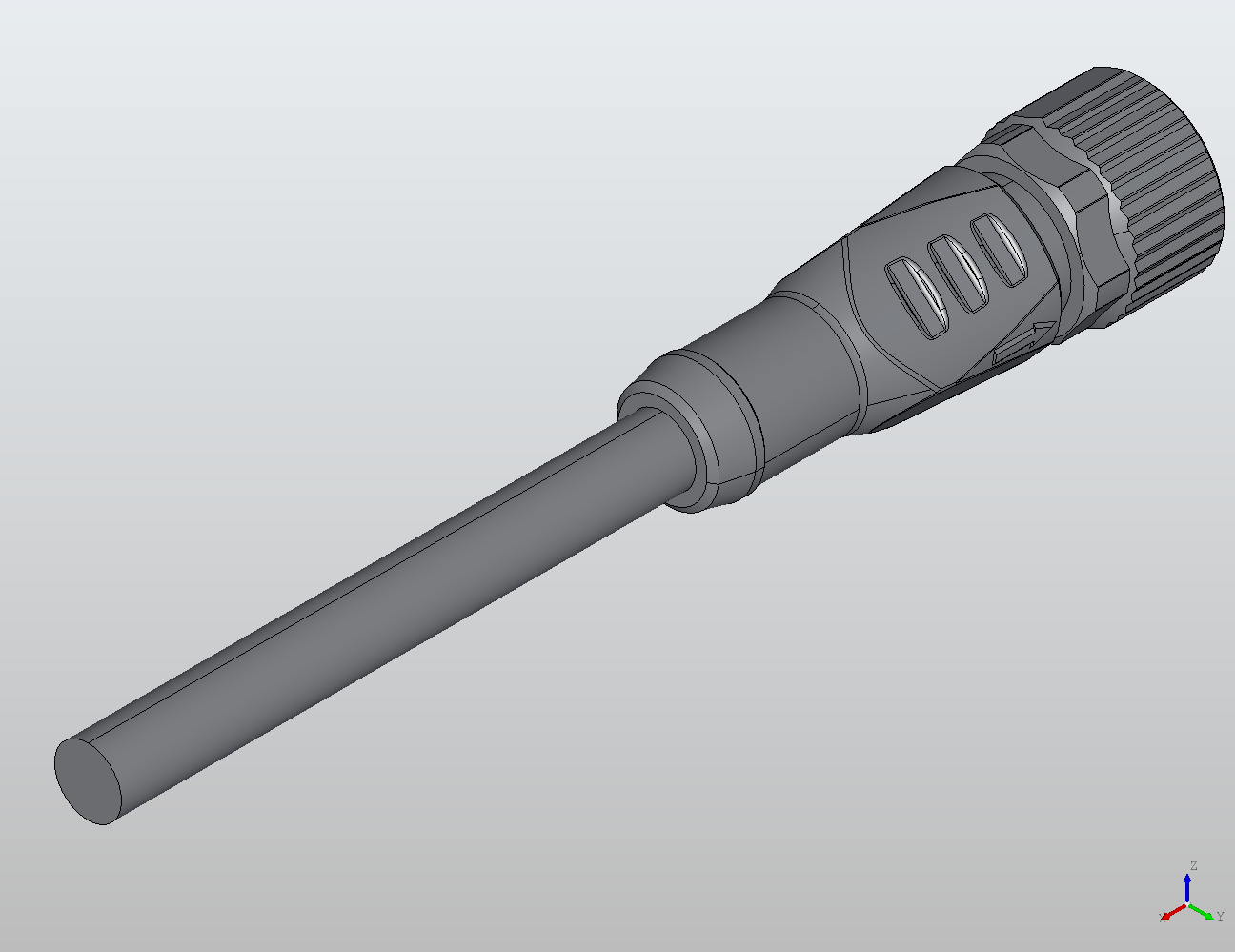

M12 Round Plug Connector Open Ended Wire Straight Female 912181
912181
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded female connector in straight orientation, SKU 912181, provides a 3-pole open-ended wire interface for standard automation cabling. Non-shielded construction suits general-purpose sensor/actuator wiring where EMI control is handled at system level, and the design is supplied without LED indication for applications that do not require local visual status feedback.
Current 12 A
Voltage 250 V AC/DC
Protection IP65
Standard IEC 61076-2-101
Shielding Yes
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Female |
| Poles | 3 |
| Coding | a |
| Variant Count | 25 |
| Current | 4 |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
| Voltage | 250V AC DC |
| Direction | Straight |
| Shielded | No |
| Protection | ip65 |
