M12 Round Plug Connector Open Ended Wire Straight Female 912241
912241
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.

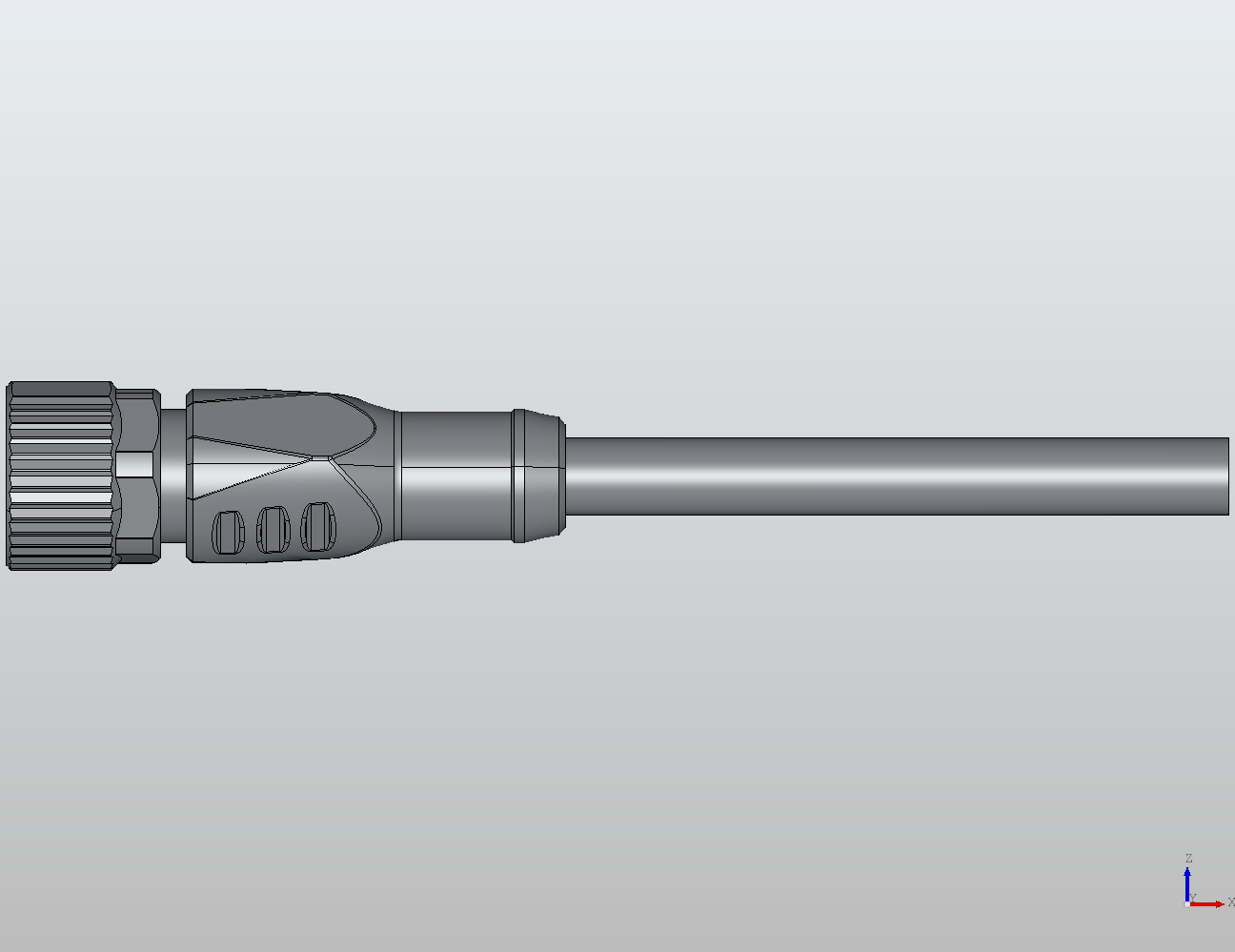

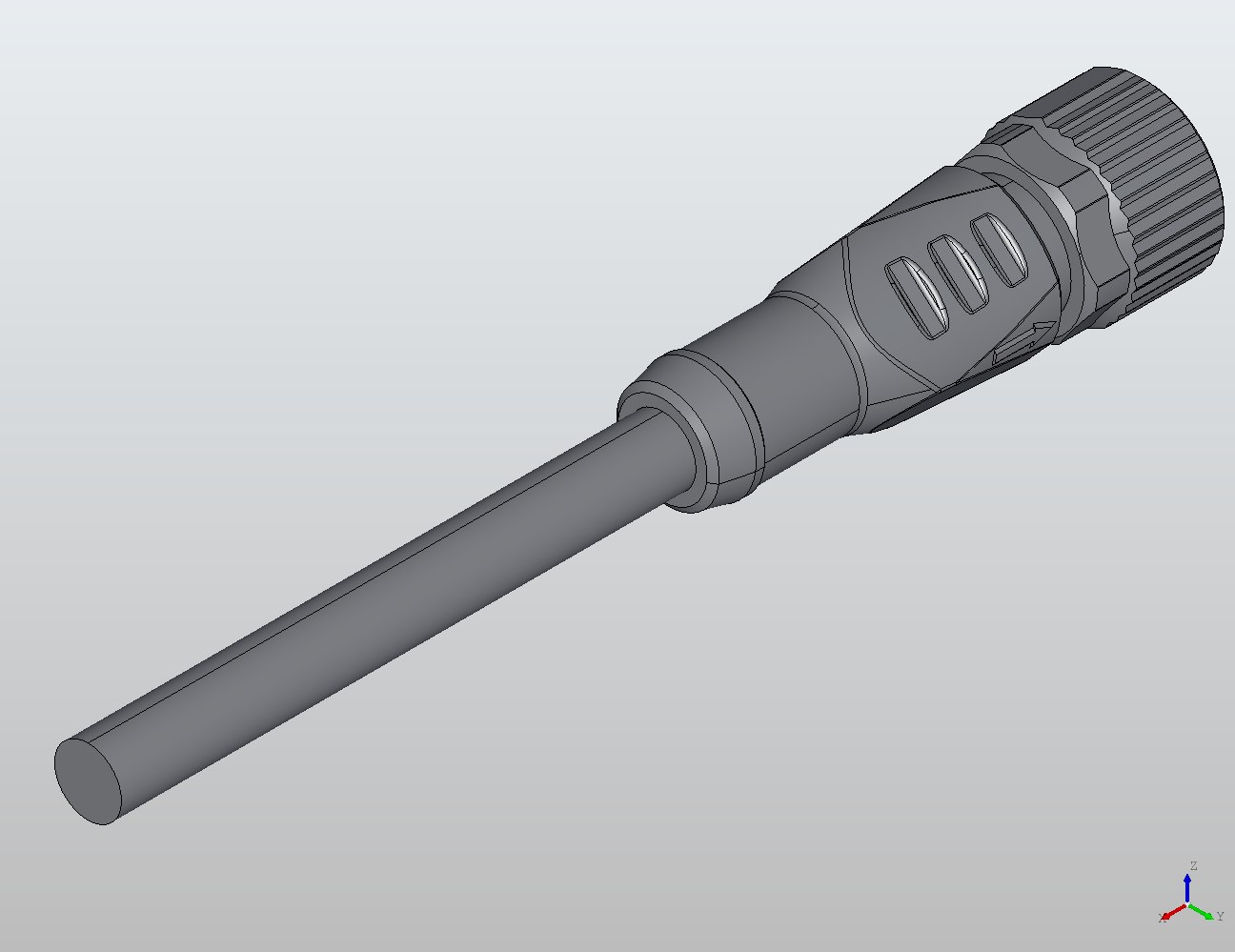

M12 A-coded female connector in a straight orientation, SKU 912241, is a 5-pole round plug with an open-ended wire side for flexible field wiring. Non-shielded construction suits standard sensor/actuator connections where additional EMI/RFI screening is not required, and the design does not include an LED indicator, so status is monitored at the device or control level.
Current 12 A
Voltage 125 V AC/DC
Protection IP65
Standard IEC 61076-2-101
Shielding Yes
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Female |
| Poles | 5 |
| Coding | a |
| Variant Count | 25 |
| Current | 4 |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
| Voltage | 125V AC DC |
| Direction | Straight |
| Shielded | No |
| Protection | ip65 |
