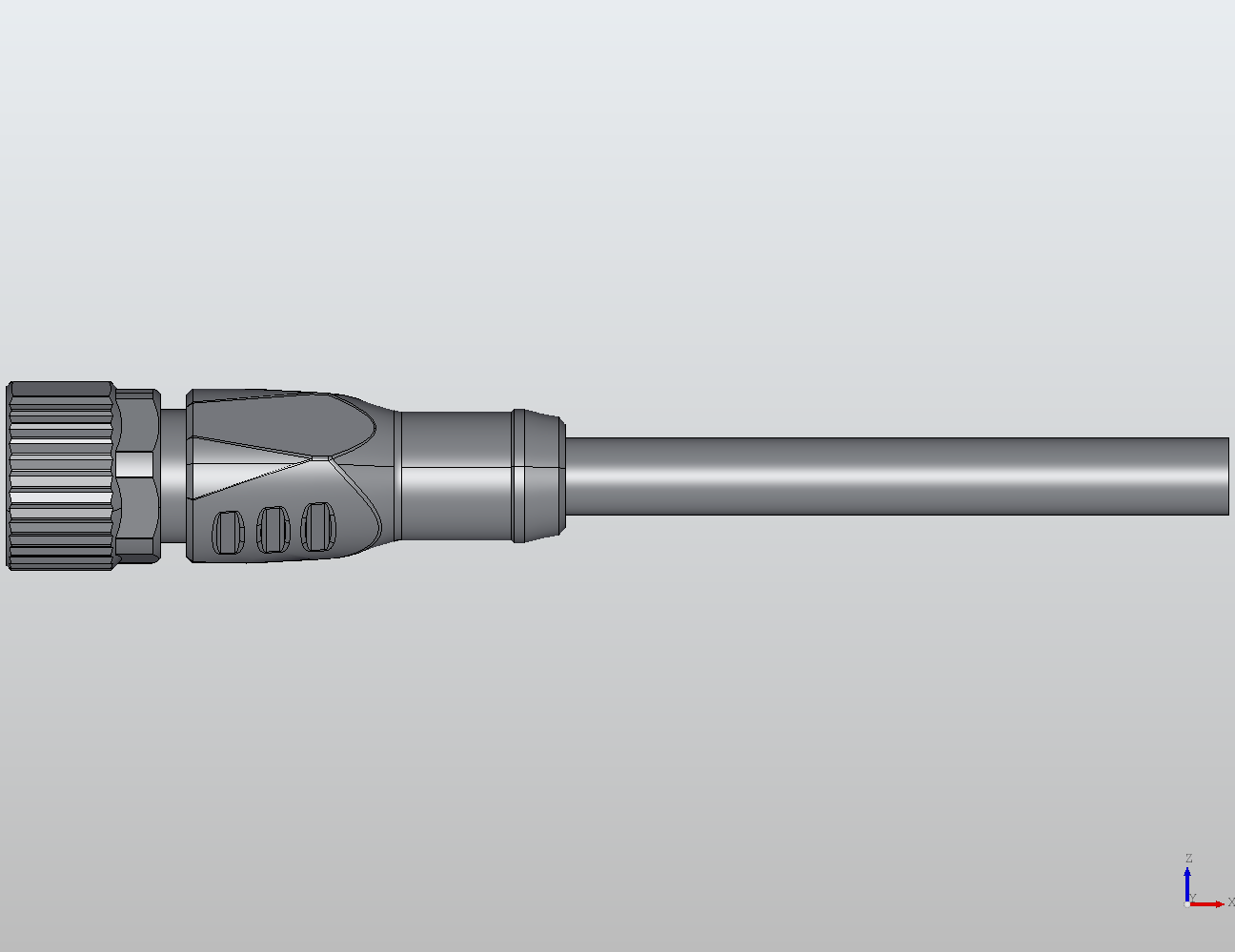

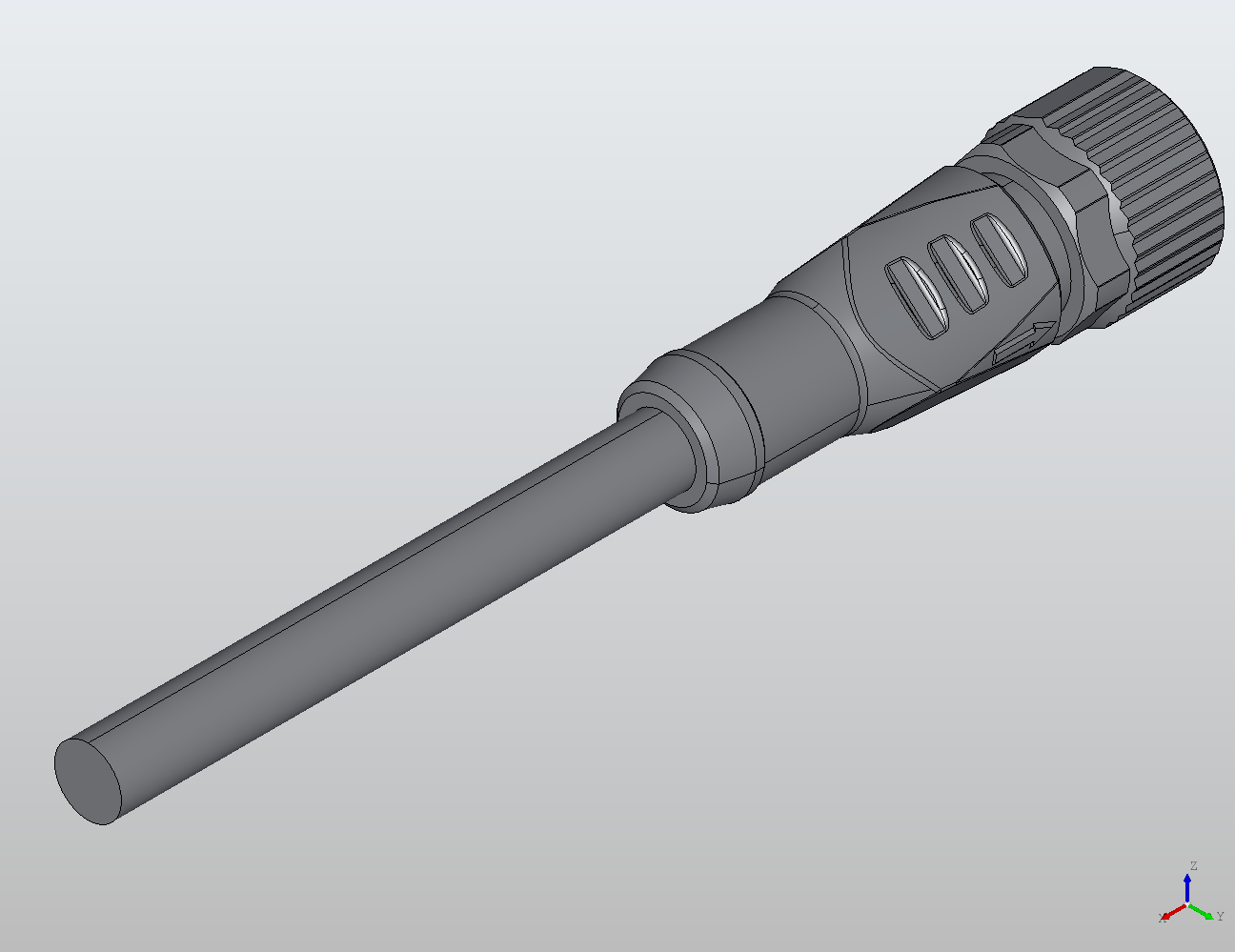

M12 Round Plug Connector Open Ended Wire Straight with LED Female 912281
912281
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded female straight connector, 4-pole, with open-ended wire lead for flexible integration in control cabinets and machine wiring. Designed for 24 VDC systems (±25%) with a 4 A current rating, it supports reliable sensor/actuator connections in typical automation circuits while maintaining IP65 protection against dust and water ingress in industrial environments.
Current 12 A
Voltage 24 VDC
Protection IP65
Standard IEC 61076-2-101
Shielding Yes
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Female |
| Poles | 4 |
| Coding | a |
| Variant Count | 25 |
| Current | 4 |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
| Voltage | 24V DC ± 25 |
| Direction | Straight |
| Shielded | No |
| Protection | ip65 |
