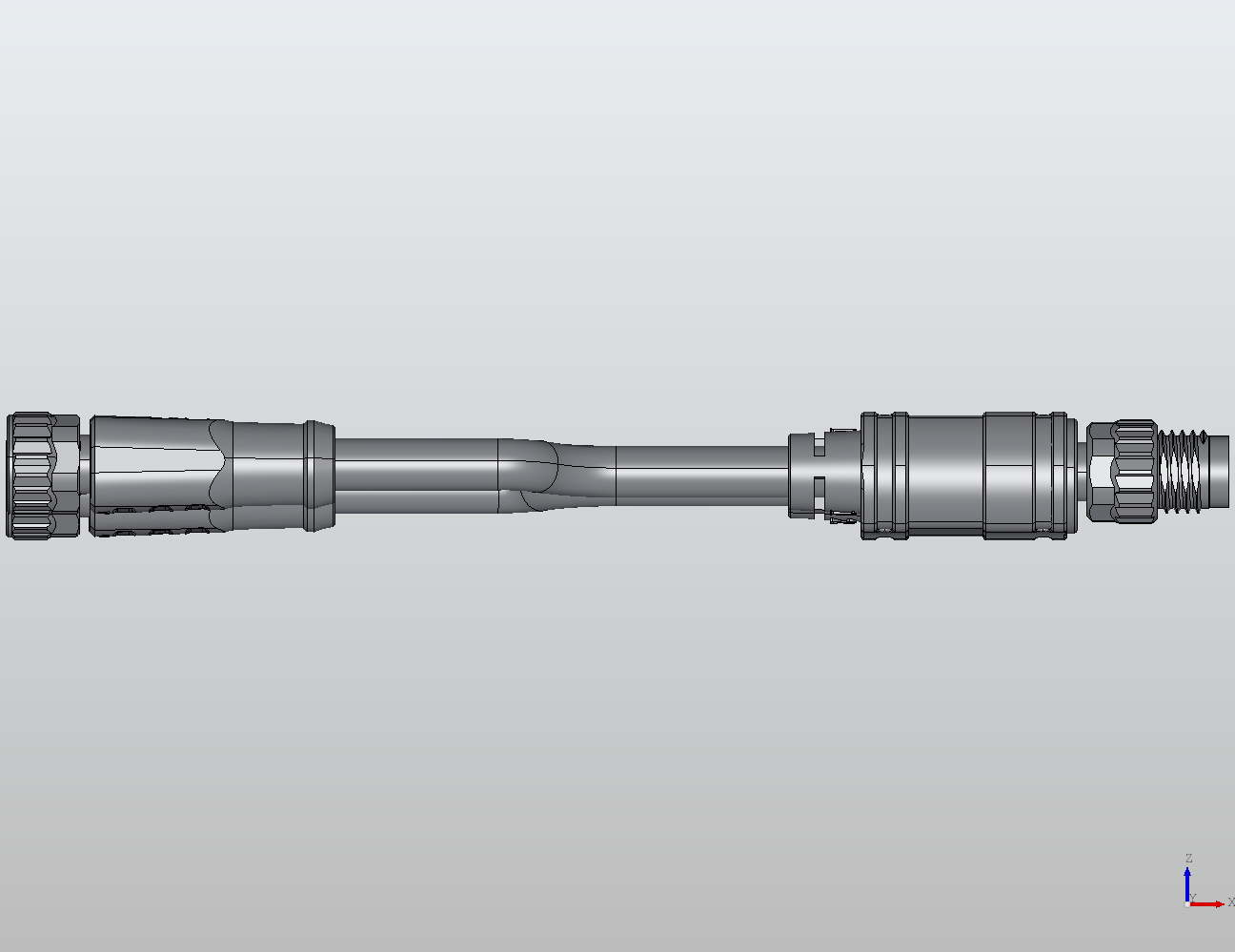

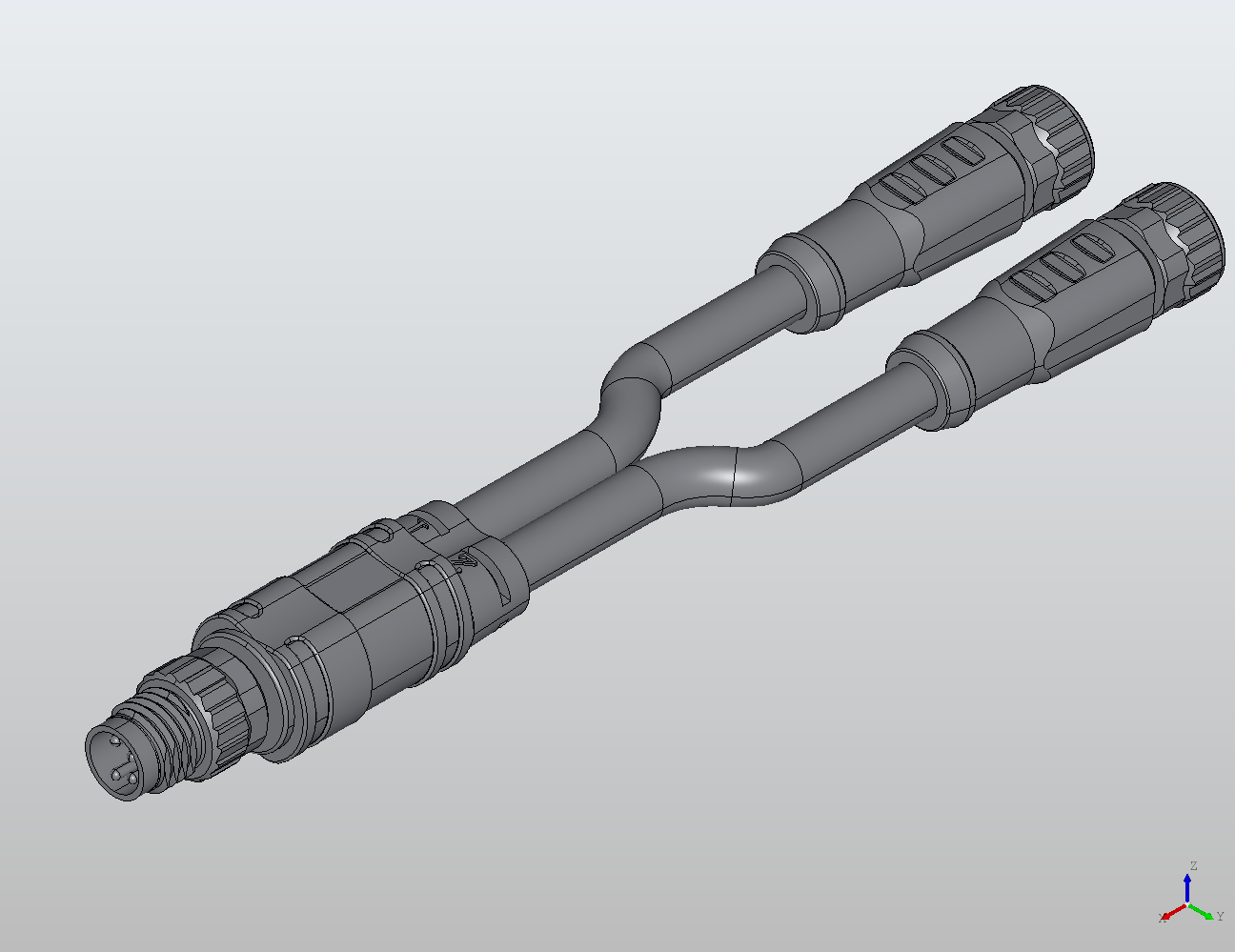

M8 Round Plug Connector M8-2m8 Connection Cable Y/Straight Male/Female 987061
987061
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M8 A-coded 4-pole connector, configured as a Y/straight male-to-female connection cable, provides a compact interface for distributed I/O and device-level wiring in automation systems. Non-shielded construction is suitable for standard sensor/actuator circuits and general-purpose field connections where additional EMI/RFI screening is not required, while the no-LED design keeps the assembly simple and space-efficient.
Current 8 A
Voltage 50 VAC / 60 VDC
Protection IP65
Standard IEC 61076-2-104
Shielding Yes
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Male/Female |
| Poles | 4 |
| Coding | a |
| Variant Count | 40 |
| Current | 4 |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
| Voltage | 50V AC 60V DC |
| Direction | Y/Straight |
| Shielded | No |
| Protection | ip65 |
