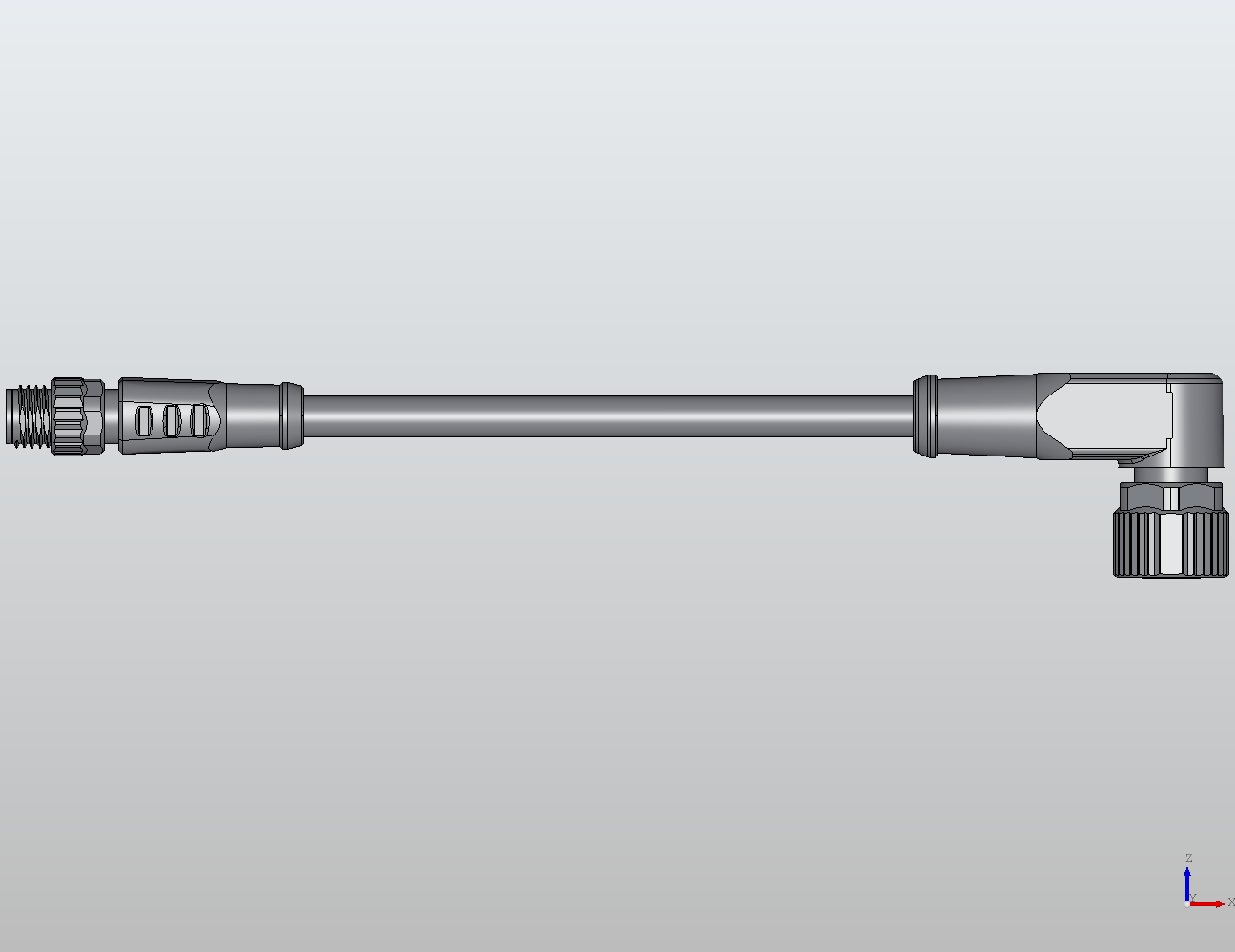

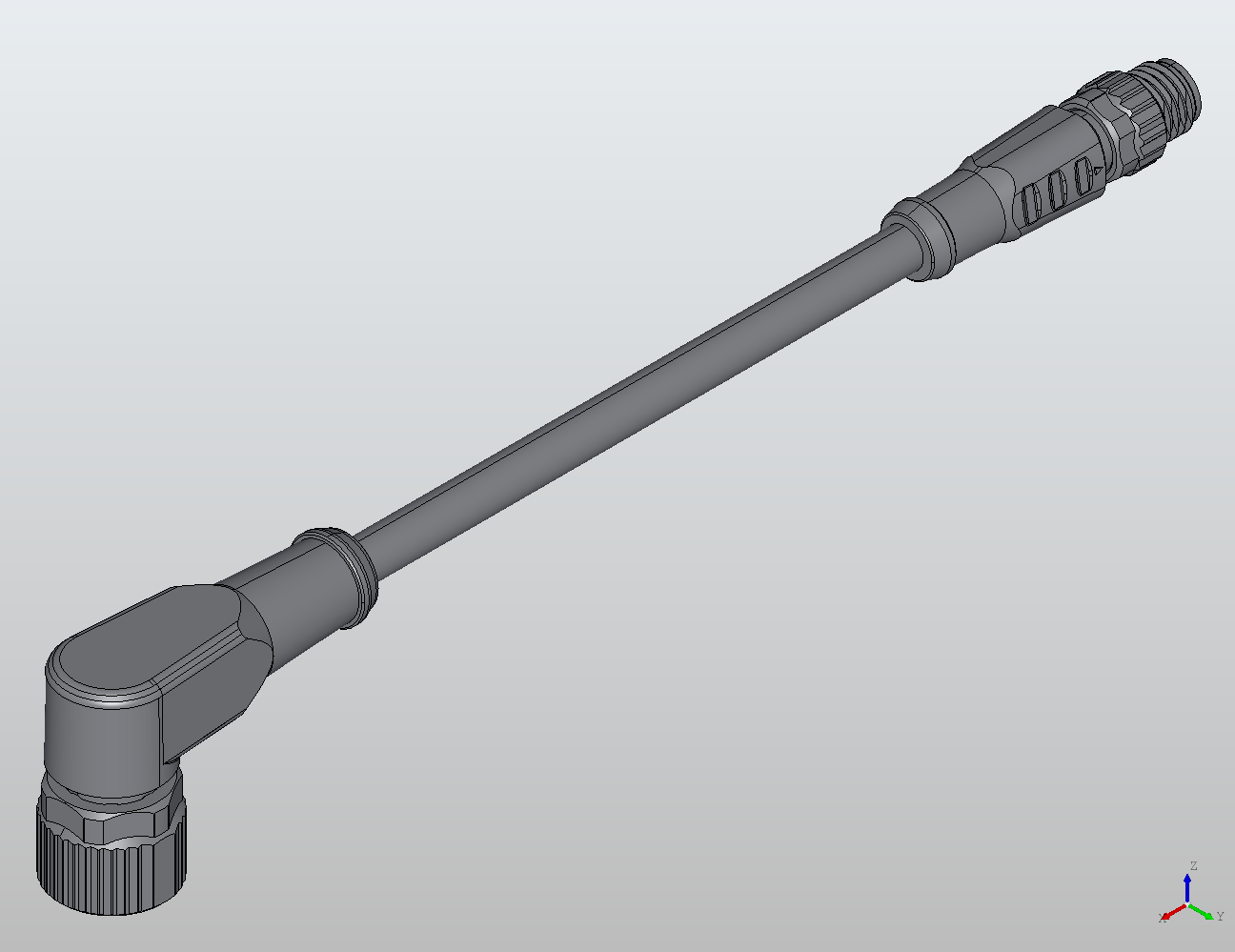

M8 Round Plug Connector M8-M12 Connection Cable Straight/90° Without/With LED Male/Female 988281
988281
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M8 A-coded 3-pole connector cable assembly, available in male or female versions with straight or 90° orientation, provides flexible M8-to-M12 interconnection for compact automation layouts. IP65 protection helps maintain stable operation in dusty or splash-prone industrial areas when properly mated.
Current 8 A
Voltage 24 VDC
Protection IP65
Standard IEC 61076-2-104, IEC 61076-2-101
Shielding Yes
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Male/Female |
| Poles | 3 |
| Coding | a |
| Variant Count | 40 |
| Current | 4 |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
| Voltage | 24V DC ± 25 |
| Direction | Straight/90 |
| Shielded | No |
| Protection | ip65 |
