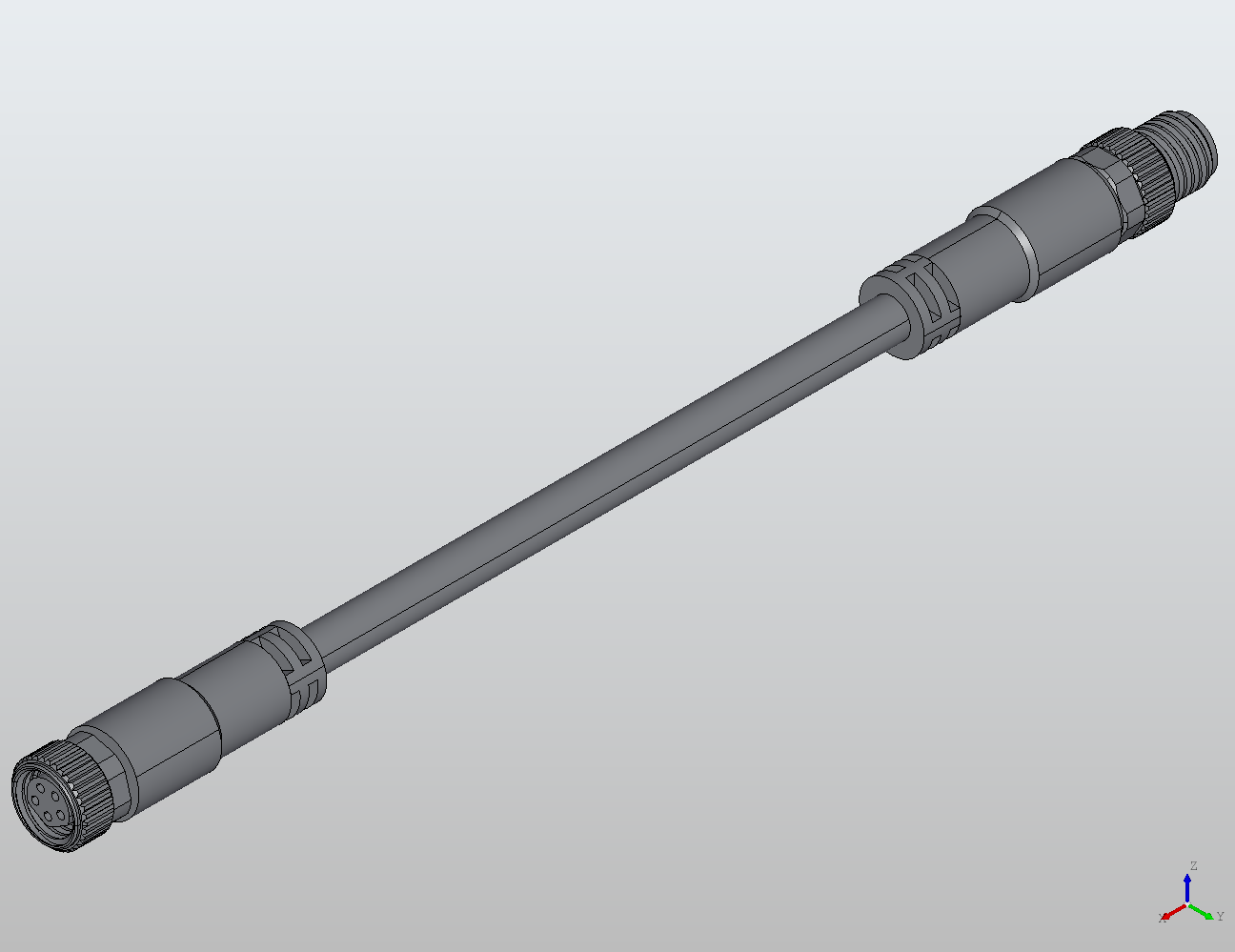

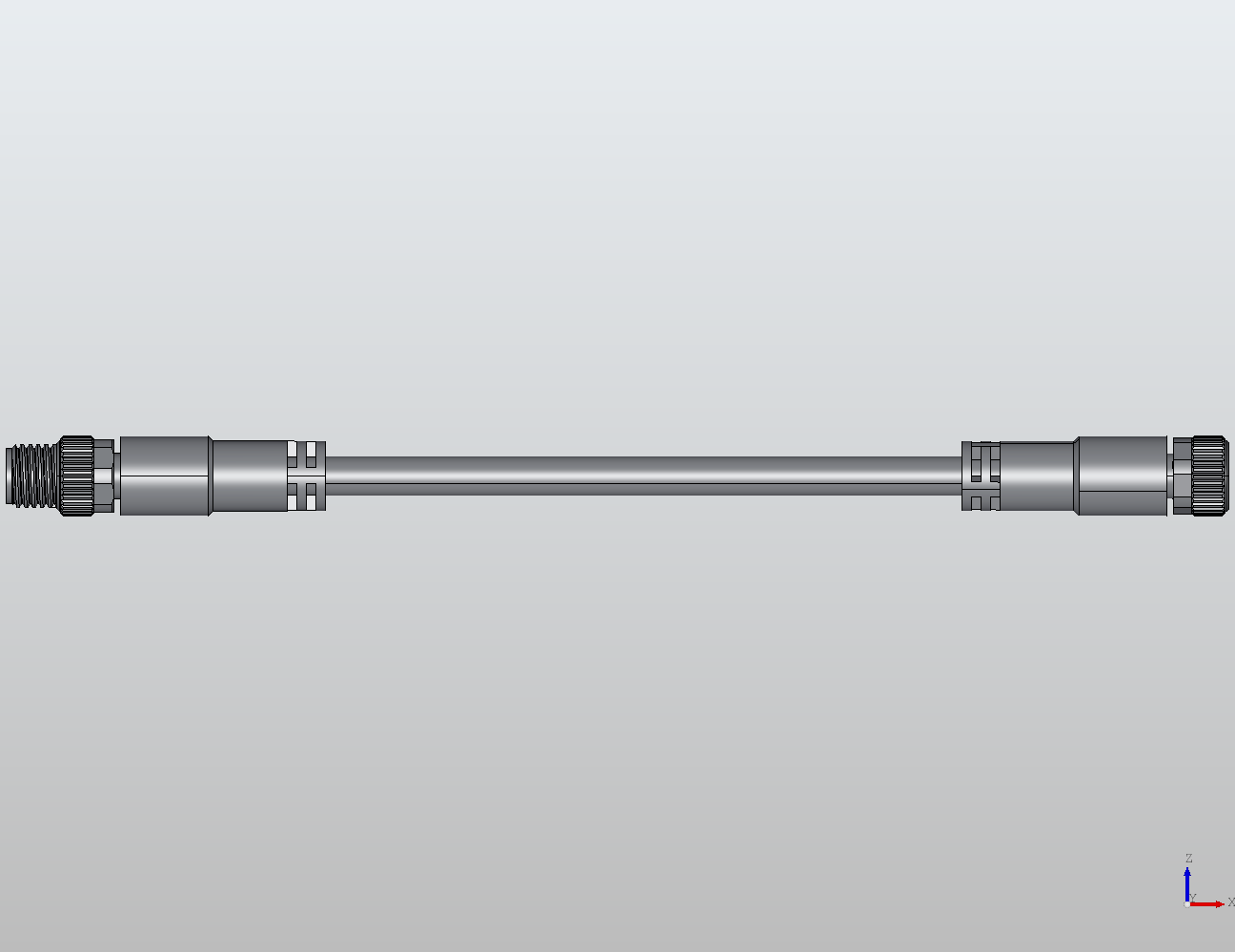

M8 Round Plug Connector M8-M8 Connection Cable Straight/Straight Male/Female 988102
988102
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M8 A-coded 5-pole male/female connection cable in straight/straight orientation (SKU 988102) provides a compact interface for standard sensor and actuator links in automated equipment. Unshielded construction suits general-purpose I/O wiring where dedicated EMI/RFI shielding is not required, and the design has no LED indicator, so status is monitored at the controller or device level.
Current 8 A
Voltage 50 VAC / 60 VDC
Protection IP65
Standard IEC 61076-2-104
Shielding Yes
LED No
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Male/Female |
| Poles | 5 |
| Coding | a |
| Variant Count | 5 |
| Current | 4 |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
| Voltage | 50V AC 60V DC |
| Direction | Straight/Straight |
| Shielded | No |
| Protection | ip65 |
