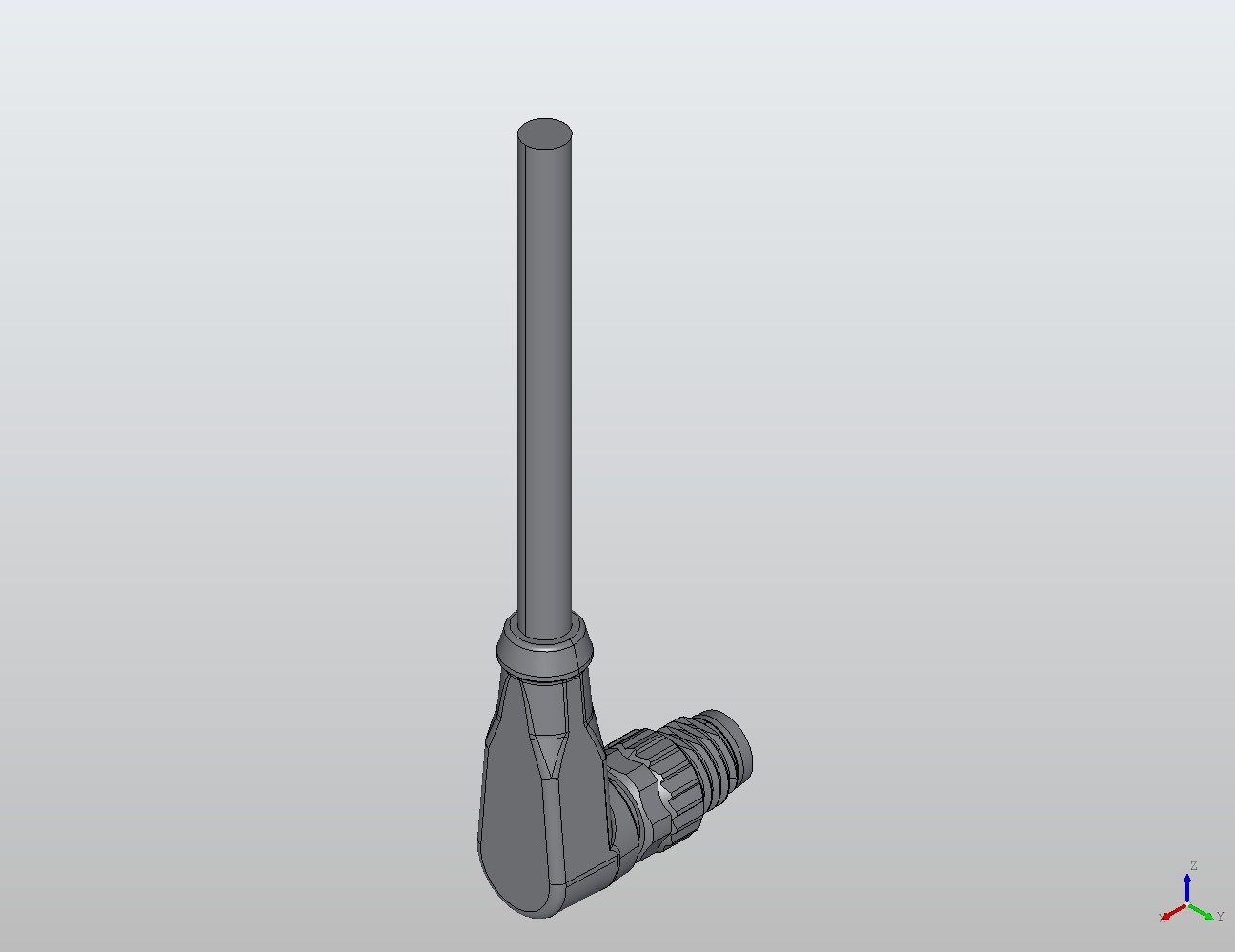

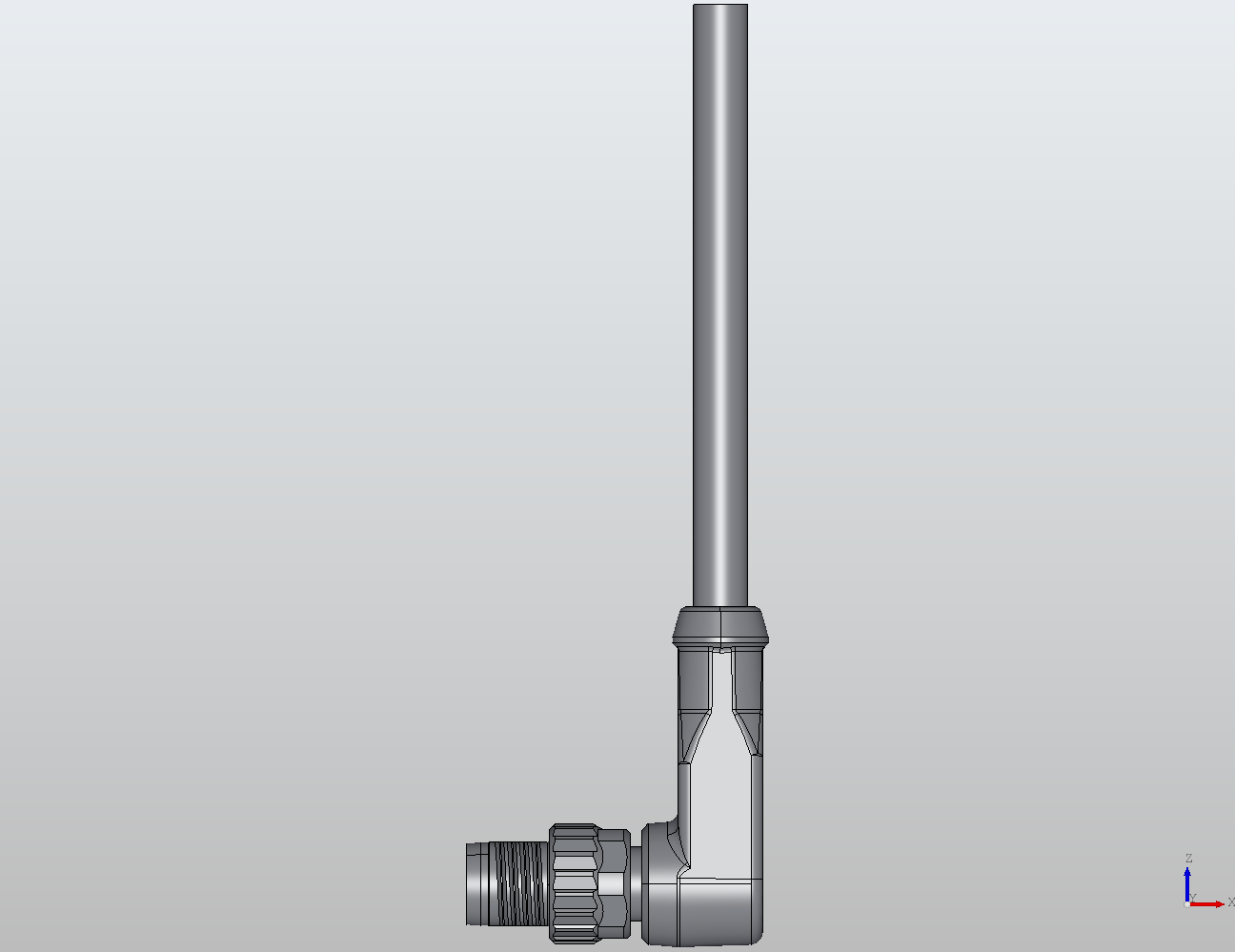

M8 Round Plug Connector Open Ended Wire 90° Male 908021
908021
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M8 A-coded male connector with a 90° orientation and 3 poles is designed as an open-ended wire plug for compact routing in tight machine layouts. Non-shielded construction suits general-purpose sensor and actuator wiring where strong EMI/RFI suppression is not a primary requirement, and the design does not include an LED indicator, so status is monitored at the device or control level.
Current 8 A
Voltage 50 V AC / 60 V DC
Protection IP65
Standard IEC 61076-2-104
Shielding Yes
Specifications
| Specification | Value |
|---|---|
| Gender | Male |
| Poles | 3 |
| Coding | a |
| Variant Count | 40 |
| Current | 4 |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
| Voltage | 50V AC 60V DC |
| Direction | 90° |
| Shielded | No |
| Protection | ip65 |
