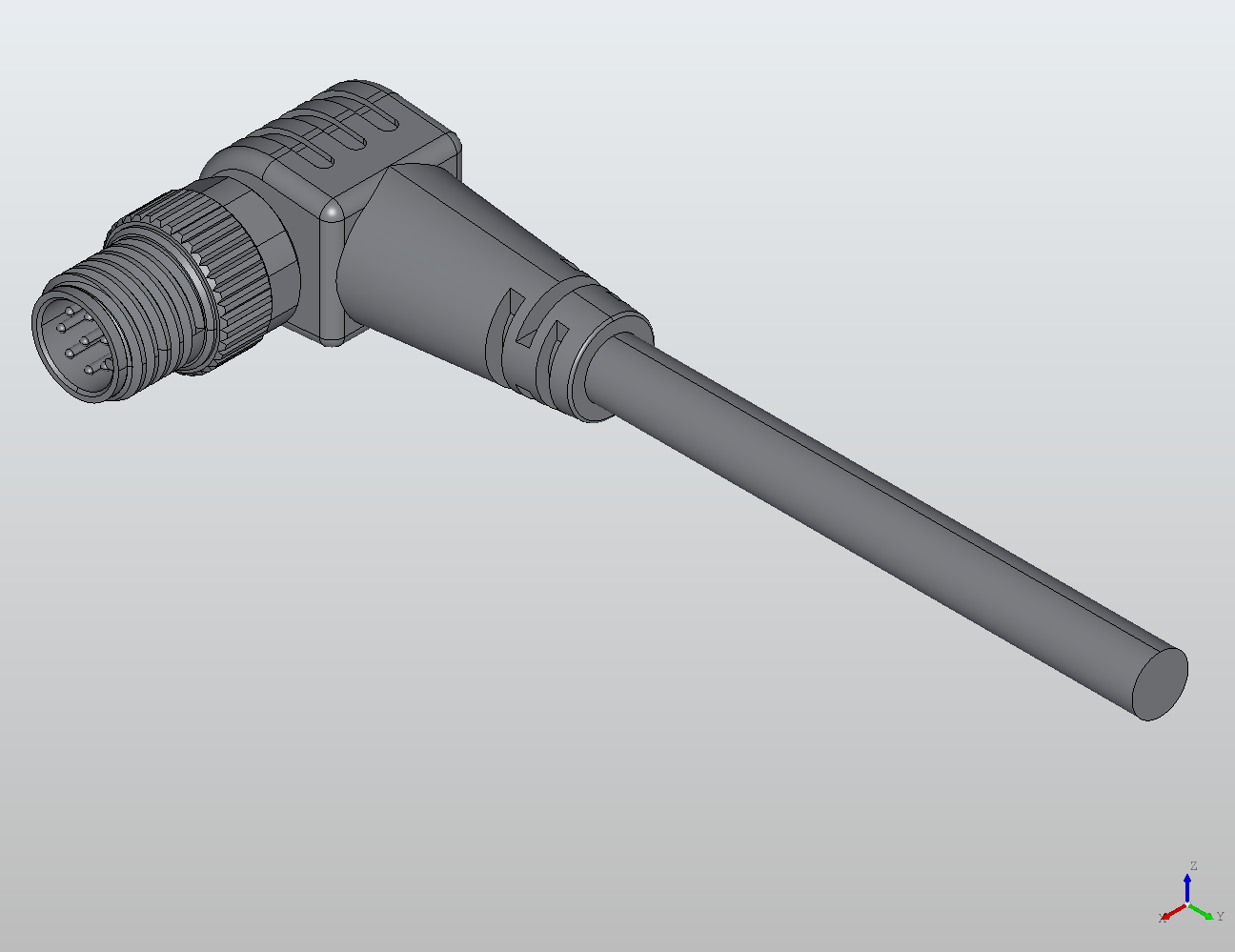

M8 Round Plug Connector Open Ended Wire 90° Male 908382
908382
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M8 B-coded male connector in a 90° orientation with 8 poles is designed for compact machine wiring where angled cable routing is required. Open-ended wire configuration simplifies integration into control cabinets, junction boxes, and custom harnesses when field termination flexibility is needed.
Current 4 A
Voltage 50 V AC / 60 V DC
Protection IP65
Standard IEC 61076-2-104
Shielding Yes
Specifications
| Specification | Value |
|---|---|
| Gender | Male |
| Poles | 8 |
| Coding | b |
| Variant Count | 5 |
| Current | 4 |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
| Voltage | 50V AC 60V DC |
| Direction | 90° |
| Shielded | No |
| Protection | ip65 |
