M8 Round Plug Connector Open Ended Wire 90° Without/With LED Female 908283
908283
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.

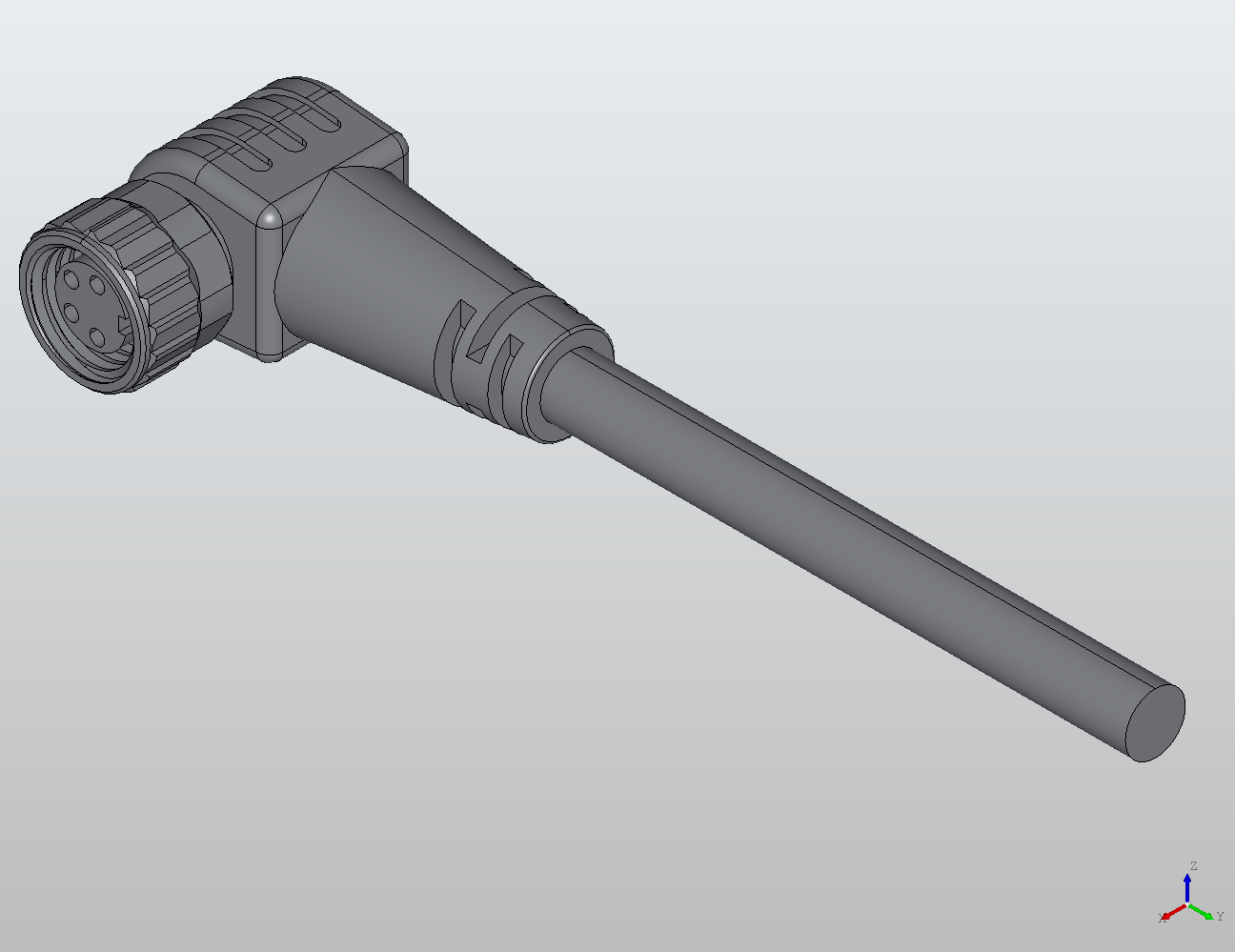

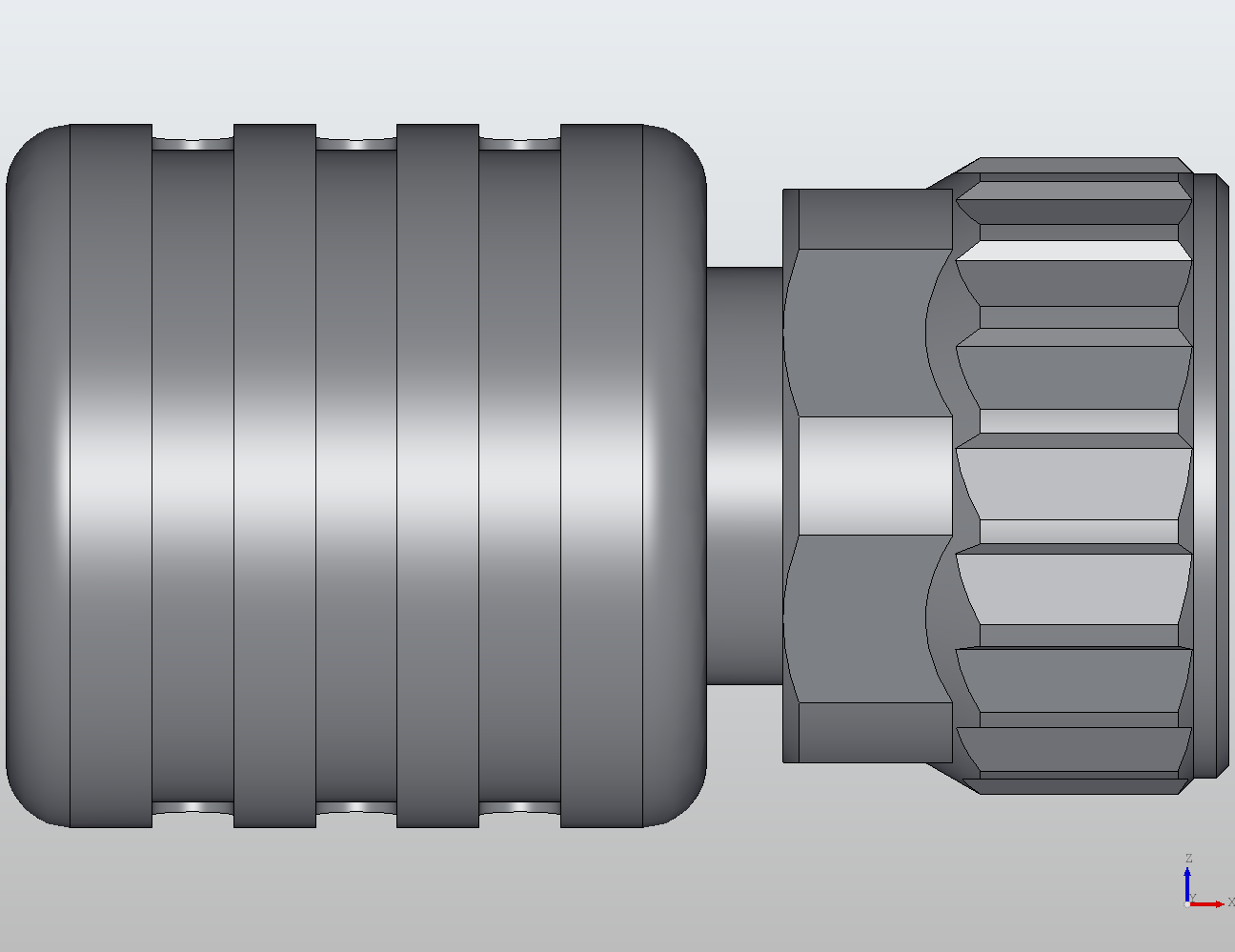

M8 A-coded 4-pole female connector with 90° orientation is designed as an open-ended wire plug for compact routing in machine and panel installations. IP65 protection helps prevent dust ingress and withstand water jets in typical factory environments when properly mated.
Current 8 A
Voltage 24 VDC
Protection IP65
Standard IEC 61076-2-104
Shielding Yes
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Female |
| Poles | 4 |
| Coding | a |
| Variant Count | 40 |
| Current | 4 |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
| Voltage | 24V DC ± 25 |
| Direction | 90° |
| Shielded | No |
| Protection | ip65 |
