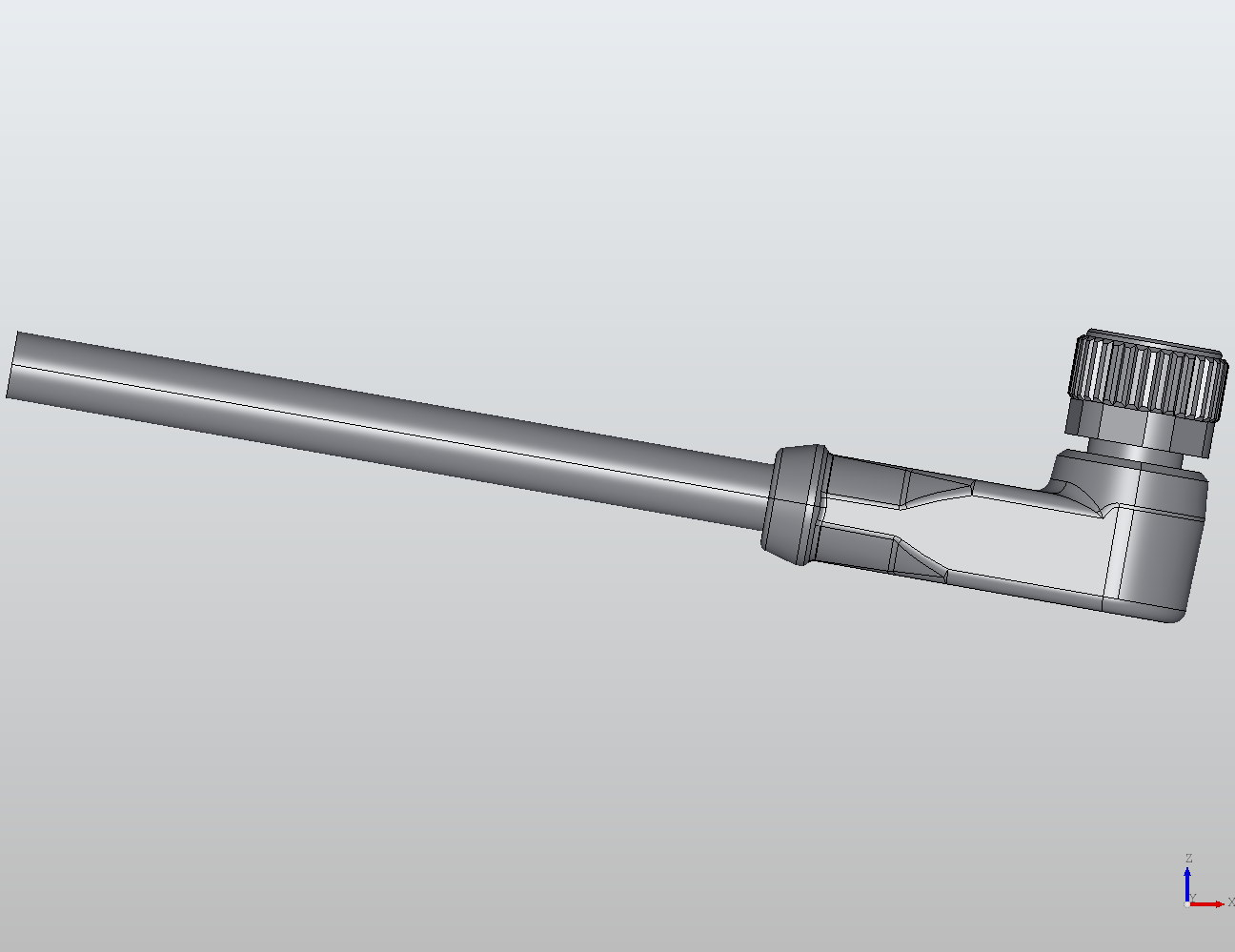

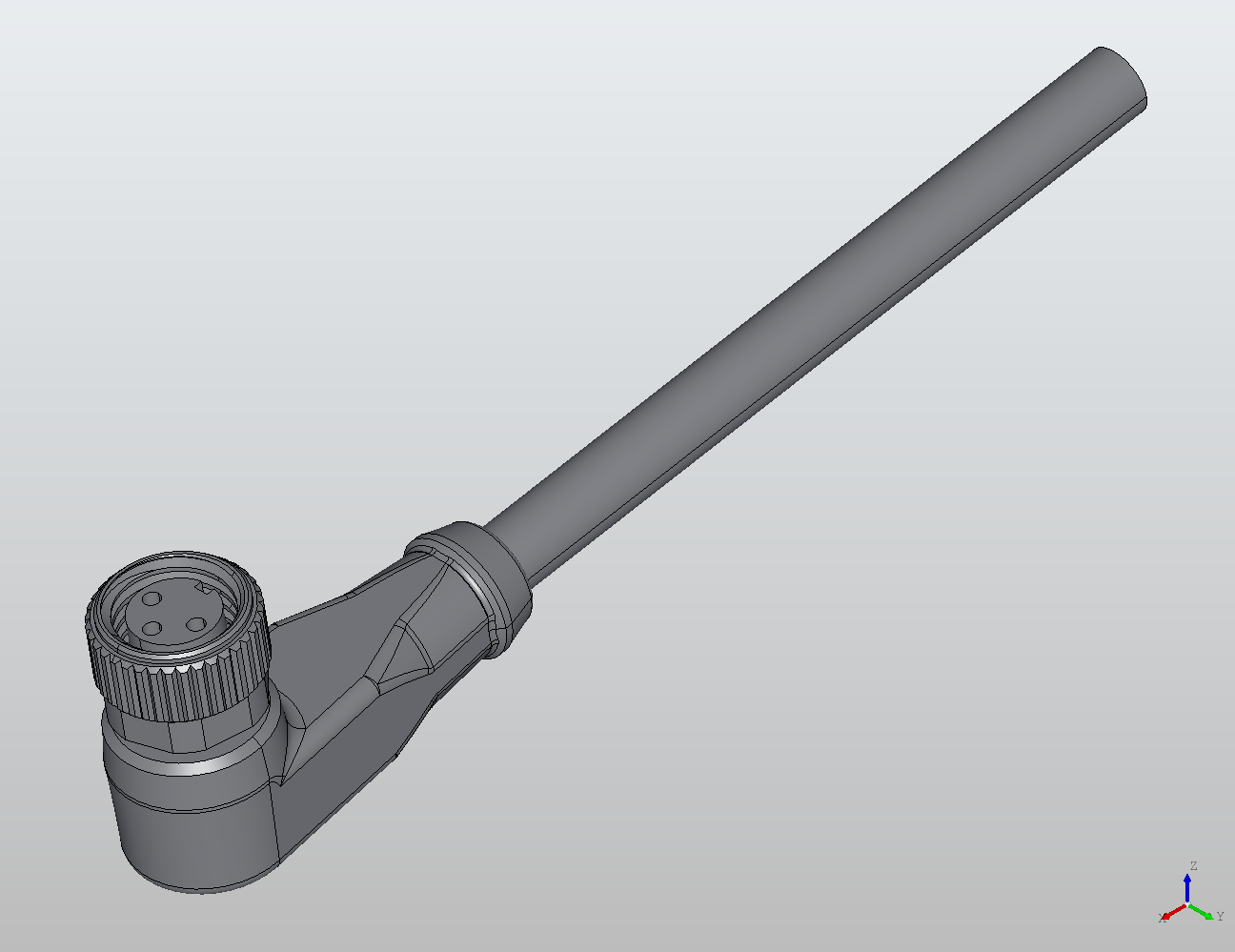

M8 Round Plug Connector Open Ended Wire (Shielded) 90° Female 908085
908085
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M8 A-coded female connector with a 90° orientation and open-ended wire design provides a compact right-angle interface for space-constrained installations. Shielded construction improves EMI/RFI immunity, helping maintain signal integrity near drives, motors, and other electrical noise sources.
Current 8 A
Voltage 50 VAC / 60 VDC
Protection IP65
Standard IEC 61076-2-104
Shielding Yes
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Female |
| Poles | 3 |
| Coding | a |
| Variant Count | 5 |
| Current | 4 |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
| Voltage | 50V AC 60V DC |
| Direction | 90° |
| Shielded | Yes |
| Protection | ip65 |
