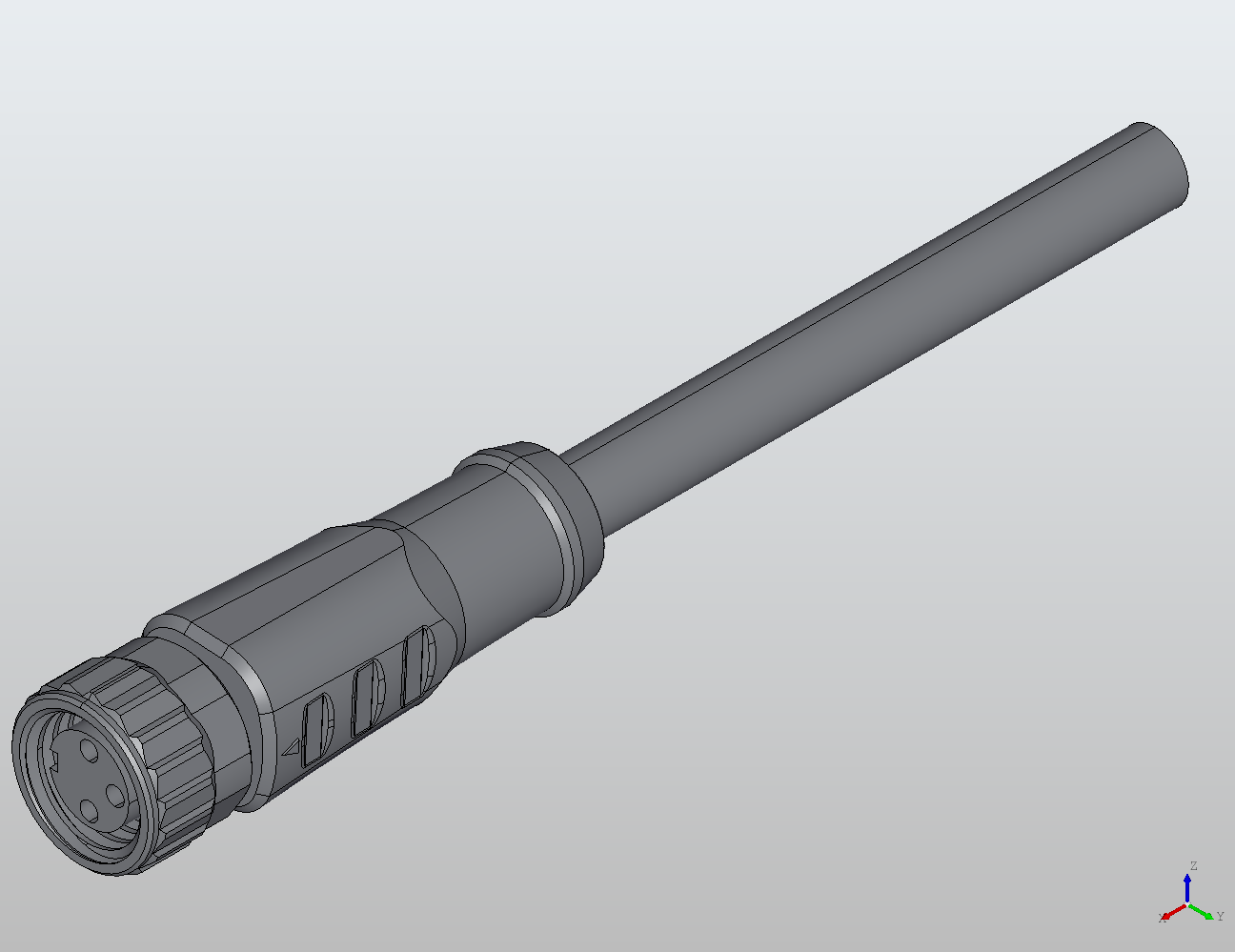

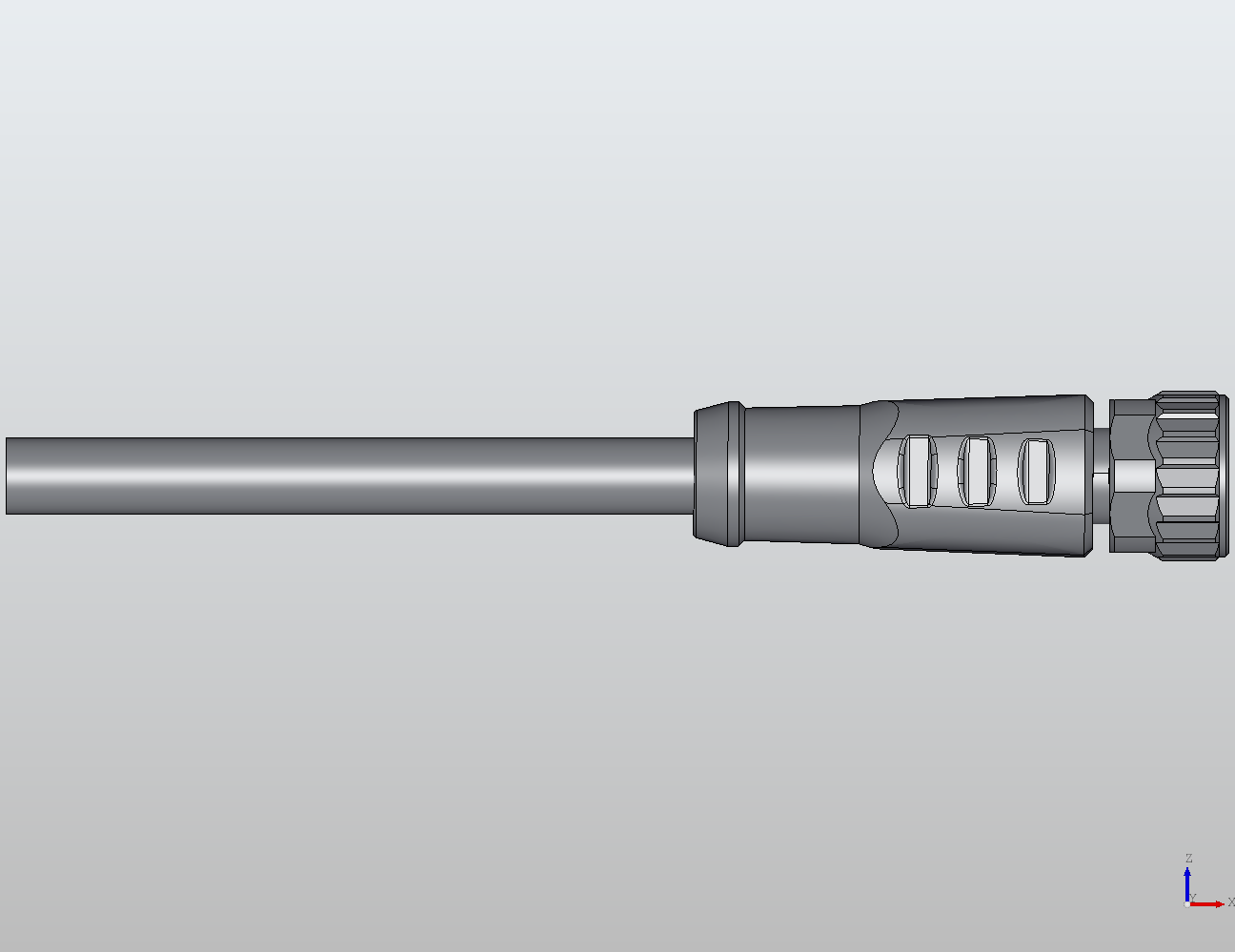

M8 Round Plug Connector Open Ended Wire Straight Female 908041
908041
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M8 A-coded 3-pole female connector in a straight, open-ended wire format supports compact sensor and actuator connections in industrial automation layouts. Unshielded construction is suited to general-purpose I/O wiring where additional EMI/RFI shielding is not required, and the version has no LED indicator, so status is handled at the device or control level.
Current 8 A
Voltage 50 V AC / 60 V DC
Protection IP65
Standard IEC 61076-2-104
Shielding Yes
LED No
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Gender | Female |
| Poles | 3 |
| Coding | a |
| Variant Count | 40 |
| Current | 4 |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
| Voltage | 50V AC 60V DC |
| Shielded | No |
| Protection | ip65 |
